D1246 HVAC/R Motors, OEM Replacment

Roll over image to zoom in Click on image to zoom

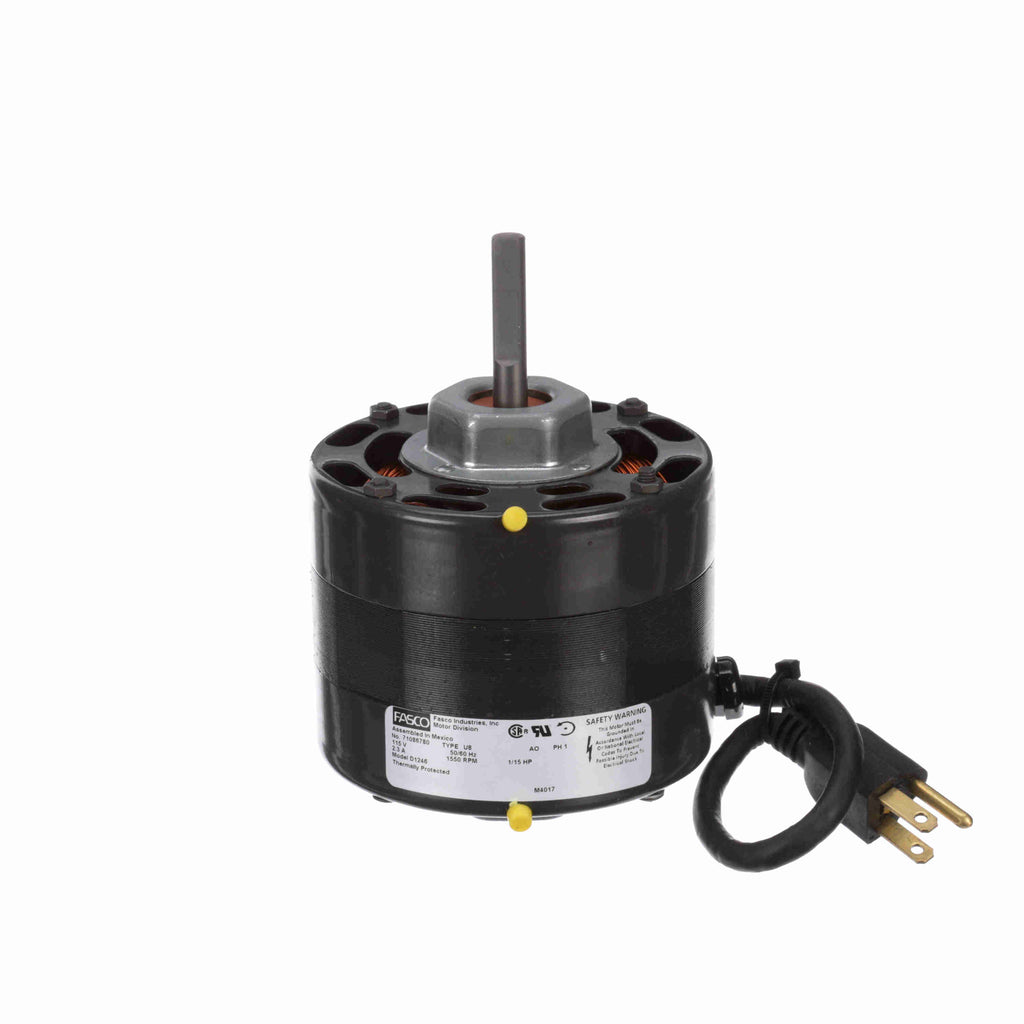

D1246 HVAC/R Motors, OEM Replacment

KEY FEATURES

OEM Direct Replacement Motor
4.4" Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8" Diameter Shaft with Flat
8" Leads with Molded Plug
Hex Mounting Hub Shaft End and Lead End

Product Specifications

Nameplate Specifications

Phase:	1	Output HP:	1/15 Hp
Output KW:	0.05 kW	Voltage:	115 V
Speed:	1550 rpm	Service Factor:	1
Frame:	4.4	Enclosure:	Open Air Over
Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
Frequency:	50/60 Hz	Current:	2.3 A
Duty:	Air Over	Insulation Class:	A
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	1

Technical Specifications

Electrical Type:	Shaded Pole	Starting Method:	Across The Line
Poles:	4	Rotation:	Counterclockwise Shaft End
Mounting:	Extended Studs	Drive End Bearing:	Sleeve
Opp Drive End Bearing:	Sleeve	Frame Material:	Na
Shaft Type:	Flat	Overall Length:	6.49 in
Shaft Diameter:	0.375 in	Shaft Extension:	2.40 in

General Specifications

UPC:	815585028451	Weight:	6.20 LB
Packaged Length:	4.38 IN	Packaged Width:	4.38 IN
Packaged Height:	10.00 IN	Country of Origin:	Mexico

Cross References: Fasco 7108-6780 7108-2206, OmniDrive SS2658, Rotom R2658
