Description
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/10 - 1/15 - 1/30 Hp |
| Output KW: | 0.07 kW | Voltage: | 115 V |
| Speed: | 1550 rpm | Service Factor: | 1 |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 2.7-2.1-1.7 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 15.19 in |
| Frame Length: | 3.40 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 5.75 in |
General Specifications
| UPC: | 815585029762 | Weight: | 5.00 LB |
| Packaged Length: | 17.00 IN | Packaged Width: | 3.38 IN |
| Packaged Height: | 3.38 IN | Country of Origin: | Mexico |
KEY FEATURES

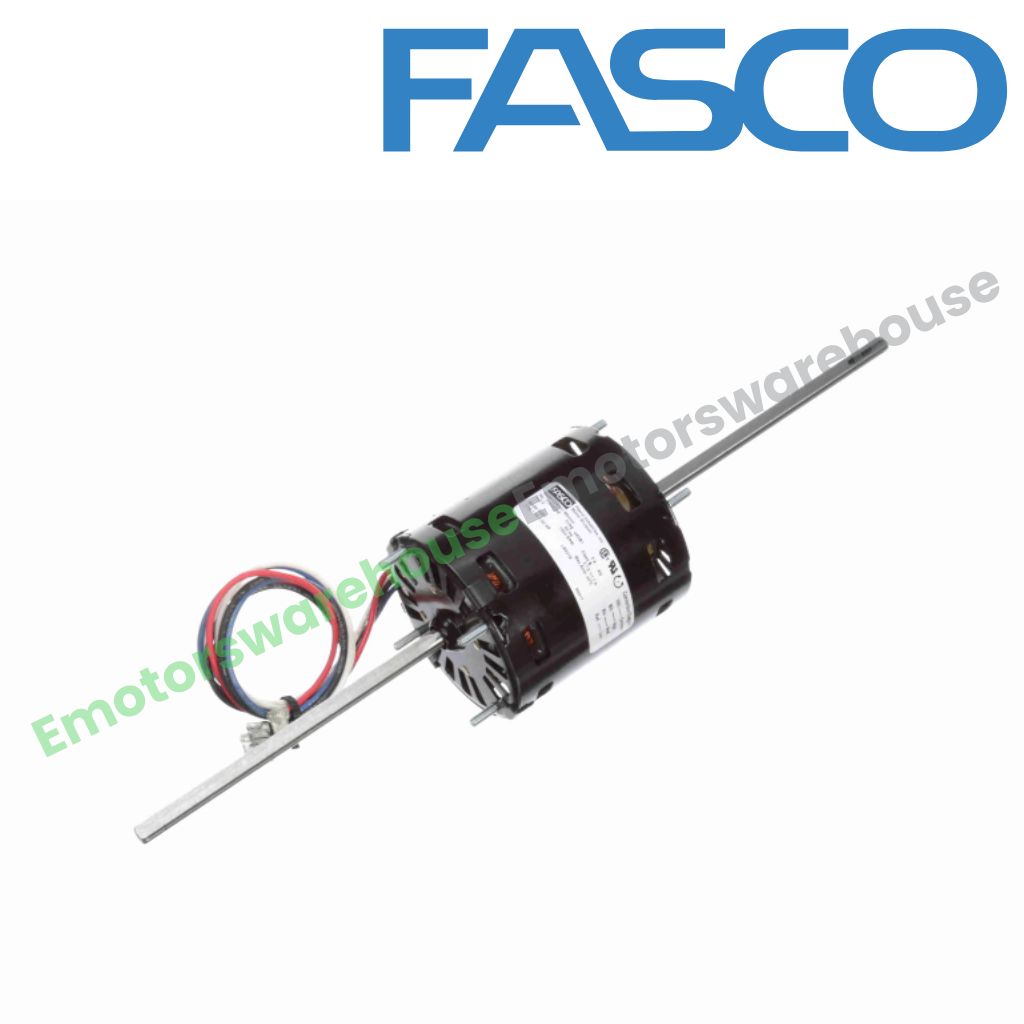

- Window Air-Conditioning Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 17" Leads with Flag Terminals
- Extended Studs Lead and Opposite Lead End
