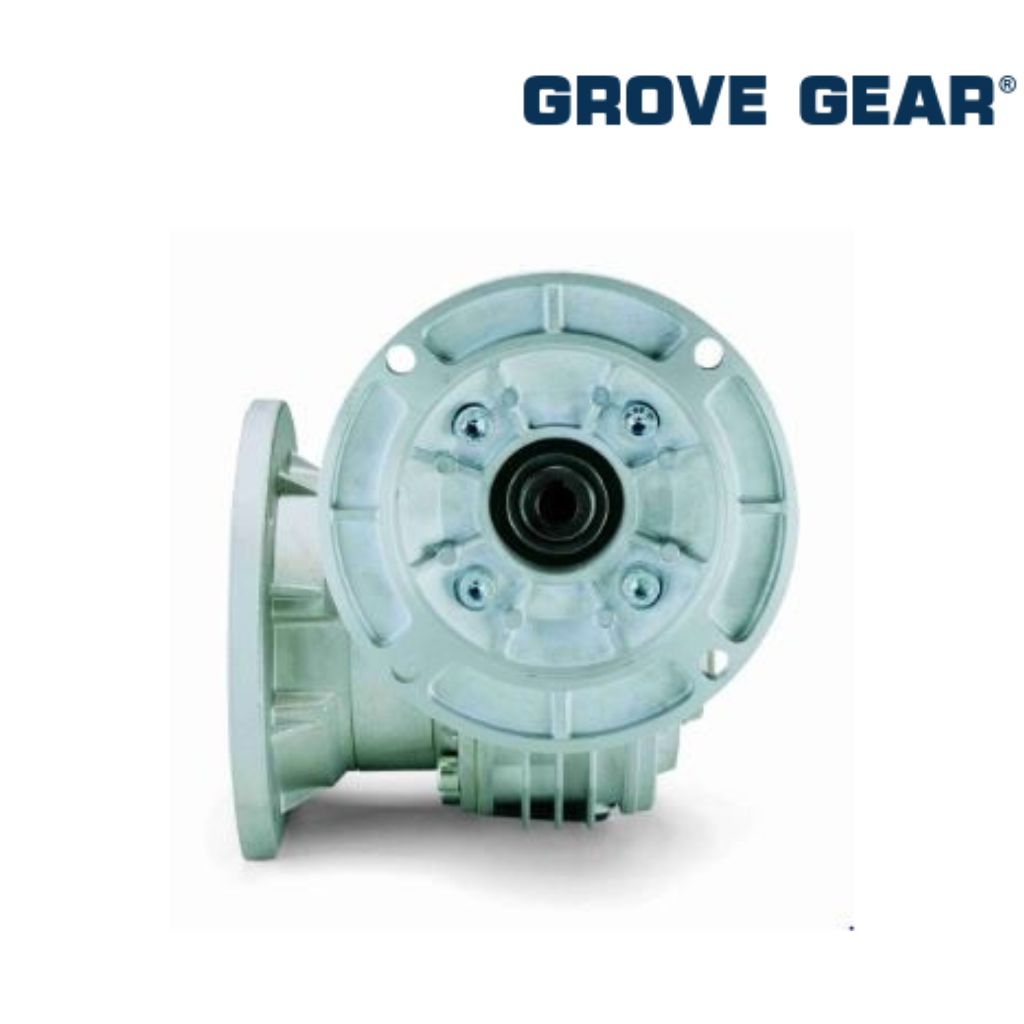

Description
Assembly: FHMQ-HL
Bore Code: 16
Center Distance Range: 1" thru 3.25"
Frame Size: 56C
Gear Type: Worm
Housing material: Aluminum
HP Range: 1/3 HP or Less (< 1/2)
Input Bore (C Face): 0.625
Input Diameter (in): 0.625
Input HP: 0.486
Input Keyway (C Face): 3/16 x 3/32
Input RPM: 1750
Input Style: C-Face Quill
Keyway: 1/4 X 1.62
Model Code: FHMQ520
Motor Frame Size: 56C
Mounting Style: Flange Mounted Hollow Output Bore
No. of Gear Reductions: Single
Output Diameter (in): 1
Output HP: 0.282
Output Key: 1/4 X 1.62
Output RPM: 29
Output Shaft: Hollow Bore
Output Torque Range: 500 to 1000 in lbs
Output Torque Rating (in-lb): 613
Product Type: Right Angle
Ratio: 60:01:00
Reducer: Worm - Right Angle
Series: Bravo Series - Compact Aluminum Worm Speed Reducers
Service Factor: 1
Shaft Seal Material: Nitrile
