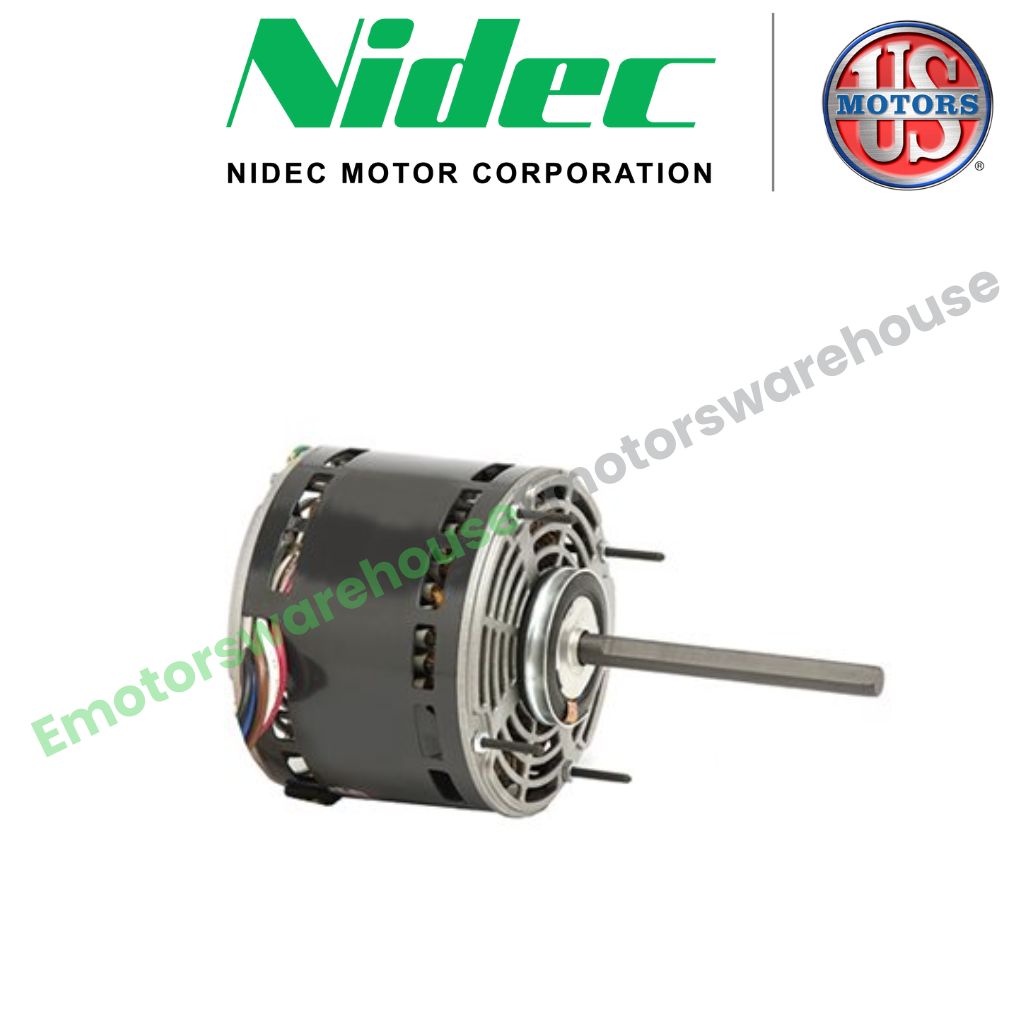

Description
- Type : Permanent Split Capacitor
- HP : 1
- Voltage : 115
- RPM : 1625
- Current (Amp) : 11.10
- Phase : 1
- Rotation : Reversible
- Frame : 48Y
- Enclosure : Open Air Over
- Speeds : 3
- Protector : Automatic
- Ambient Temp : 40°C
- CFM : N/A
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 6.00 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 13.15 in
- Bearings : Self-Align
- Capacitor Rating : 25-370
- Features : Class B Insulation, Extended Bolts Shaft End, Resilient Ring Mount, Belly Band Mount, 36" Leads, 1/2" Diameter Shaft With Flat, Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
