Description

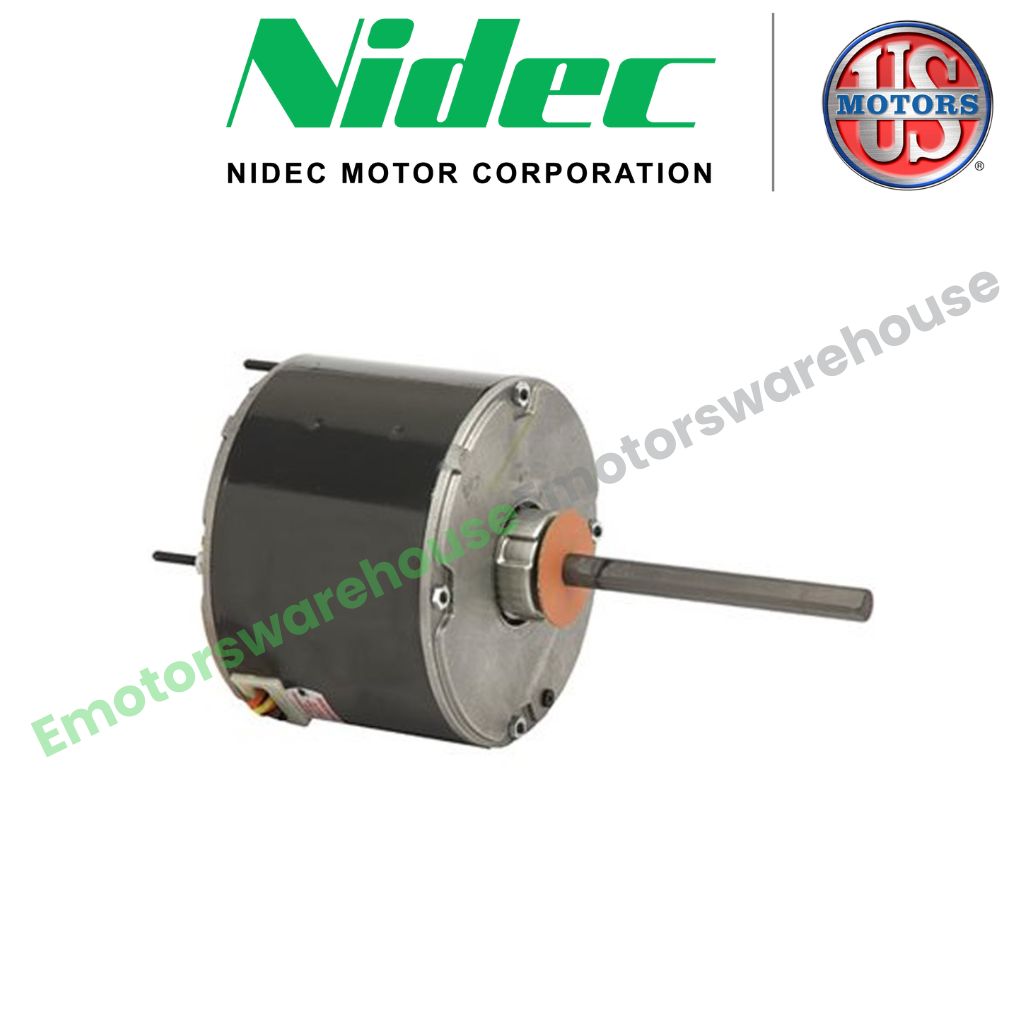

The Nidec U.S. Motors 1890 is a 1/4 HP, 1625 RPM, 208-230V single-phase PSC condenser fan motor in a 48Y frame, totally enclosed air over, with belly-band mount and a 1/2" x 5" shaft with flat. Requires a 5 mfd 370V run capacitor (not included).
Replaces: Century FSE1024 · Copeland 050-0266-04, 050-0266-07 · Emerson K55HXDFB6834, K55XTFP8715, K55HXTLE5178 · Marathon X012
Before you order: reversible rotation, 30" leads, 1/2" x 5" shaft, self-aligning bearings. Need the capacitor? See run capacitors.
- Type : Permanent Split Capacitor
- HP : 1/4
- Voltage : 208-230
- RPM : 1625
- Current (Amp) : 1.40
- Phase : 1
- Rotation : Reversible
- Frame : 48Y
- Enclosure : Totally Enclosed Air Over
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 60°C
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 5.00 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 9.86 in
- Bearings : Self-Align
- Capacitor Rating : 5-370
- Features : Class B Insulation, Extended Bolts Opposite Shaft End, Belly Band Mount, 30" Leads, 1/2" Diameter Shaft With Flat, Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Cross References: Century FSE1024, Copeland 050-0266-04 050-0266-07, Emerson K55HXDFB6834 K55XTFP8715 K55HXTLE5178, Marathon Stock No. X012
