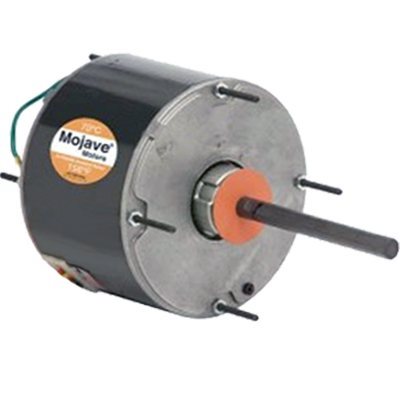

Name: 3742H HVAC/R Motors, Condenser Fan Motors
Brand: Nidec U.S. Motors
SKU: 3742H
Price: 359.40 CAD
Availability: InStock

Due to the uncertainty in cross-border shipment regulations to the U.S., all duties on parcel shipments will temporarily be the responsibility of the receiver until further notice. Any duties applicable to the invoice will be paid by the recipient to the carrier upon delivery. The carrier will contact you for any required information and follow-ups. We appreciate your understanding. Please refer to our Policy.

3742H HVAC/R Motors, Condenser Fan Motors

Roll over image to zoom in Click on image to zoom

Type : Permanent Split Capacitor
HP : 3/4
Voltage : 460
RPM : 1075
Current (Amp) : 2.00
Phase : 1
Rotation : Reversible
Frame : 48Y
Enclosure : Totally Enclosed Air Over
Speeds : 1
Protector : Automatic
Ambient Temp : 70°C
Service Factor : 1.00
Shaft Dimensions : 0.50 in X 6.00 in
Frequency : 60Hz
Diameter : 5.5 in
Frame Length : 12.86 in
Bearings : Ball
Capacitor Rating : 10-370
Features: Class F Insulation, Extended Bolts Opposite Shaft End, Belly Band Mount, 48" Leads, 1/2" Diameter Shaft With Flat, Capacitor Required: 10 Mfd-370 Volts (Not Supplied With Motor)
Cross References: A.O. Smith F48A06C71 F48M13A50 F48Z18A01, Emerson K55HXWGE0946, General Electric 5KCP39NGN863
