Description
Connection Diagram Dimensional Diagram

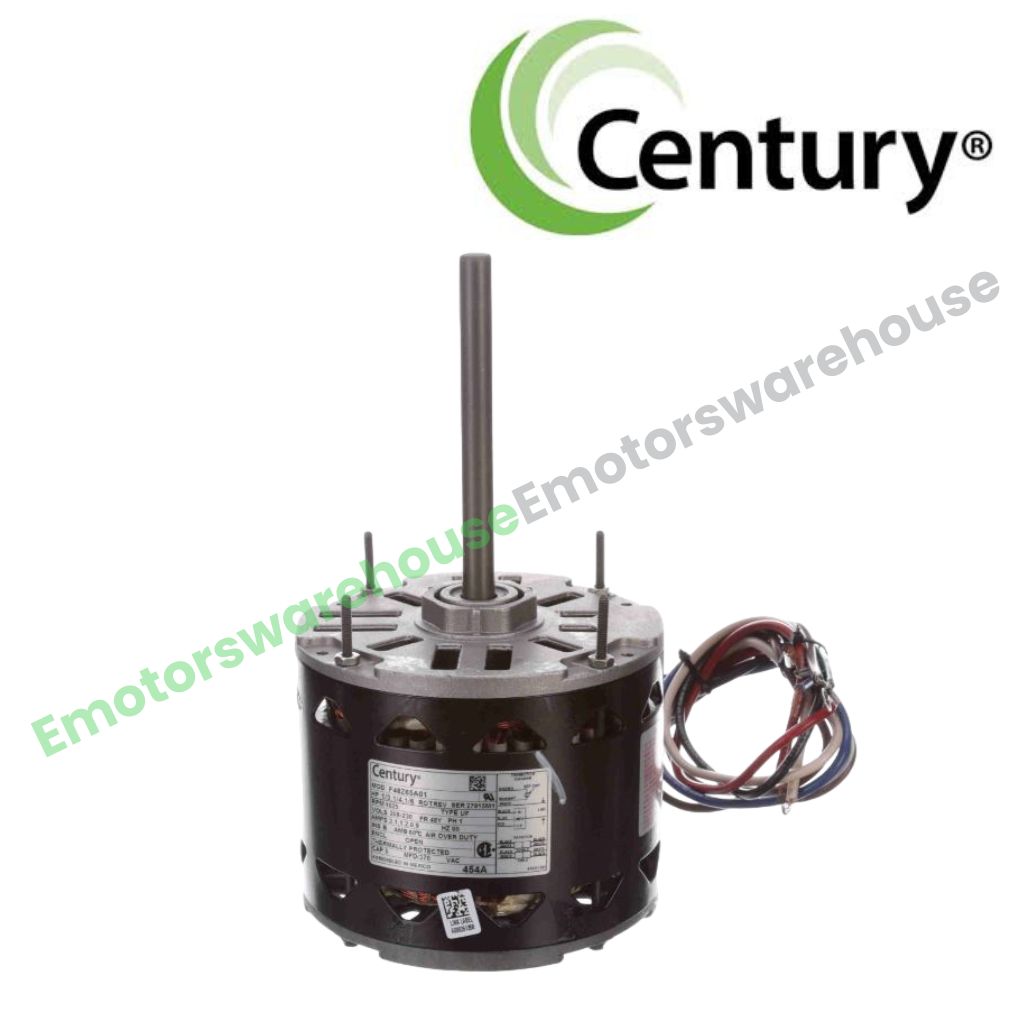

- Type: Permanent Split Capacitor
- HP: 1/3
- Voltage: 208-230
- RPM: 1625
- AMPs: 2.1
- Phase: 1
- Rotation: Reversible
- Frame: 48Y
- Enclosure: Open Air Over
- Speeds: 3
- Protector: Thermally Protected
- Ambient Temp: 60°C
- Service Factor: 1.00
- Shaft Dimensions: 0.500 in X 5.48 in
- Frequency: 60Hz
- Diameter: 5.5 in
- Length: 3.88 in
- Bearings: Ball
- Features: Class B Insulation, 18" Leads, Extended Studs Shaft End, Resilient Ring Mounting, Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Weight: 19lbs
- References: A.O.Smith Century F48Z65A01, Emerson KA55HXSCK7719 Universal HF2J068 A.O. Smith F48SJ4L6, Emerson 1693, Fasco D781, GE 3995, GE 5KCP39KGC061, Leece Neville RE208, Marathon X011, Carrier/BDP HC37ME268, GE 3042, Marathon X270, A.O. Smith 454, A.O. Smith F48Z65A01, A.O. Smith FD1034, Emerson 55HXAA6127, Emerson K55HXECE2645, Emerson K55HXEV1559, Fasco D981, Franklin F-006, Franklin F-593, GE 45KCP39KG774, GE 5KCP39CG990, GE 5KCP39DG4220, GE 5KCP39EGC053, GE 5KCP39FGC040, GE 5KCP39GGB580, GE 5KCP39GGD866, GE 5KCP39GK774, GE 5KCP39HGC211, GE 5KCP39HGE214, GE 5KSP39KG6034, GE G410, GE G425, GE G430, GE G575, GE G577, Johnstone Supply S88-424, Johnstone Supply S88-861, Marathon W48A1702005, Universal Electric 200-084, Universal Electric HF2F004, Universal Electric HF2G016, Universal Electric HF2G7016, Universal Electric HF2H005
