Description
- Type : ECM
- HP : 1/2
- Voltage : 120 / 240
- RPM : 1050
- Current (Amp) : 7.70 / 4.30
- Phase : 1
- Rotation : Reversible
- Frame : 48
- Enclosure : Open Air Over
- Speeds : 1
- Protector : Thermally Protected
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.500 in X 4.98 in
- Frequency : 60/50Hz
- Diameter : 5.5 in
- Frame Length : 4.00 in
- Bearings : Ball

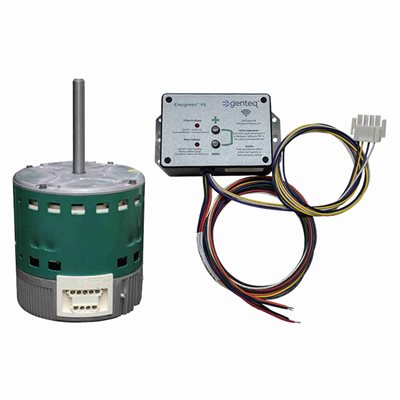

- Features: Class B Insulation, 36" Leads, Belly Band Mount (Belly Band Not Included), Variable Speed Replacement Motor, Includes User Interface
- Weight: 17 lbs
- Cross References: G.E. 5SME39HXL3224A
