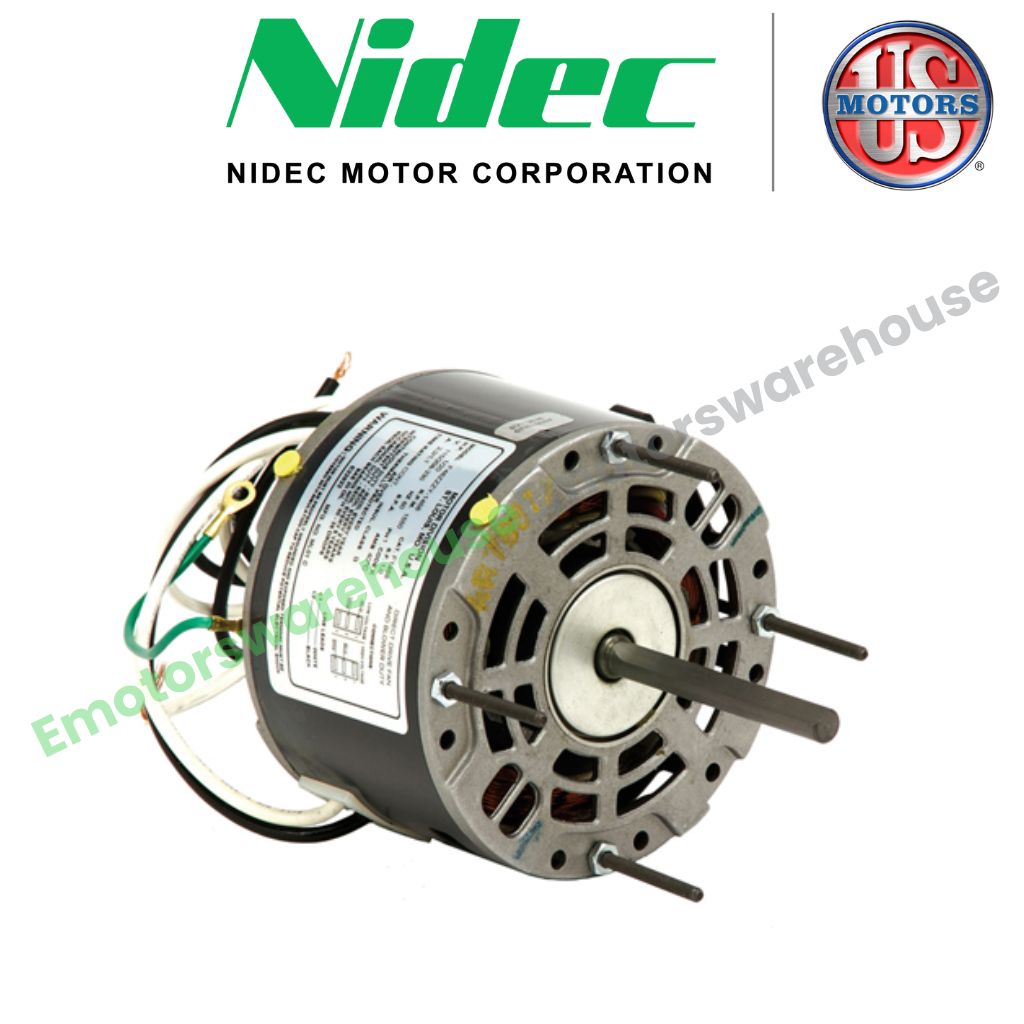

721P HVAC/R Motors , Fan And Blower Motors

Dimensional Diagram

• Type : Permanent Split Capacitor
• HP : 1/10
• Voltage : 115 / 230
• RPM : 1550
• Current (Amp) : 2.70 / 1.40
• Phase : 1
• Rotation : Clockwise Lead End
• Frame : 42Y
• Enclosure : Open Air Over
• Speeds : 2
• Protector : Automatic
• Ambient Temp : 40°C
• CFM :
• Service Factor : 1.00
• Shaft Dimensions : 0.50 in X 2.44 in
• Frequency : 60Hz
• Diameter : 5.0 in
• Frame Length : 7.43 in
• Bearings : Self-Align
• Features : Class B Insulation, Resilient Base Mount, 36" Leads, 1/2" Diameter Shaft With Flat
• Manufacturer Model #: K048WHD4394013B
• References: Century 9638, Century 9639
