Description
Connection Diagram Dimensional Diagram
- Type : Permanent Split Capacitor
- HP : 1/2
- Voltage : 460
- RPM : 1075
- Current (Amp) : 1.51/0.92
- Phase : 1
- Rotation : Reversible
- Frame : 48Y
- Enclosure : Open Air Over
- Speeds : 2
- Protector : Automatic
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.500 in X 4.50 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 4.50 in
- Bearings : Sleeve

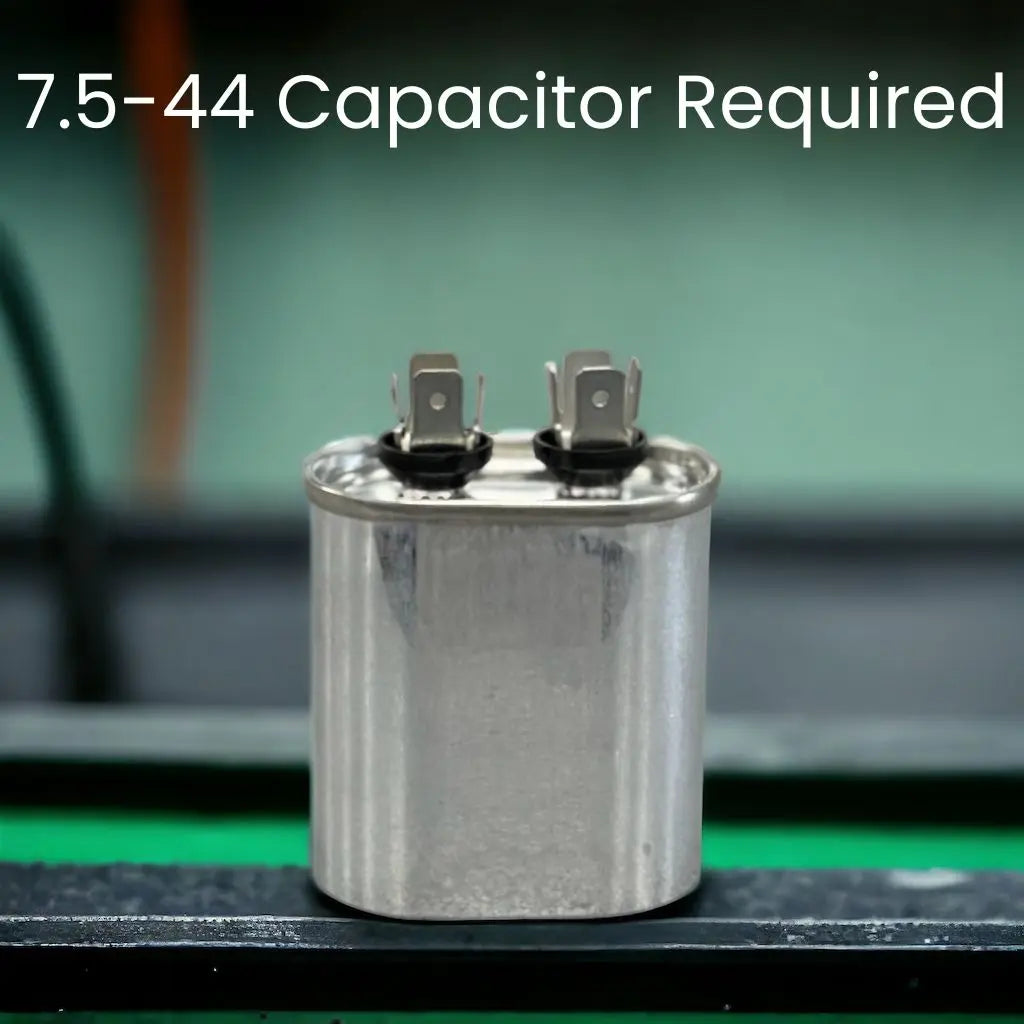

- Capacitor Rating : 7.5-44
- Features : Class B Insulation, 12 in Leads, Flex Mount, Capacitor Required 7.5Mfd-370V Not Supplied With Motor
- References: A.O. Smith 9421, A.O. Smith 9421V1, A.O. Smith F48Z91A01, GE 5KCP39NGN367S, Universal Electric 9421, Universal Electric HE3J7277, Universal Electric HE3J7289
