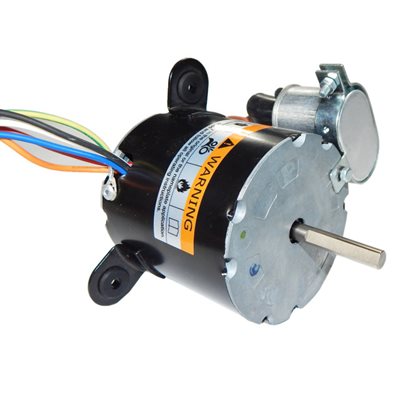

Description
- Type : Permanent Split Capacitor
- HP : 1/20
- Voltage : 115 / 230
- RPM : 1550
- Current (Amp) : 0.80 / 0.40
- Phase : 1
- Rotation : Clockwise Shaft End
- Frame : 3.3
- Enclosure : Totally Enclosed Air Over
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.315 in X 1.50 in
- Frequency : 60Hz
- Diameter : 3.3in
- Frame Length : 5.00 in
- Bearings : Ball
- Capacitor Rating : Supplied With Motor
- Features: Class B Insulation, 3 Lug Mount Opposite Shaft End, 5/16" Diameter Shaft With Flat, Capacitor Required: 3 Mfd-370 Volts (Supplied with Motor)
- Weight: 5 lbs
- Cross References: Fasco D1189
