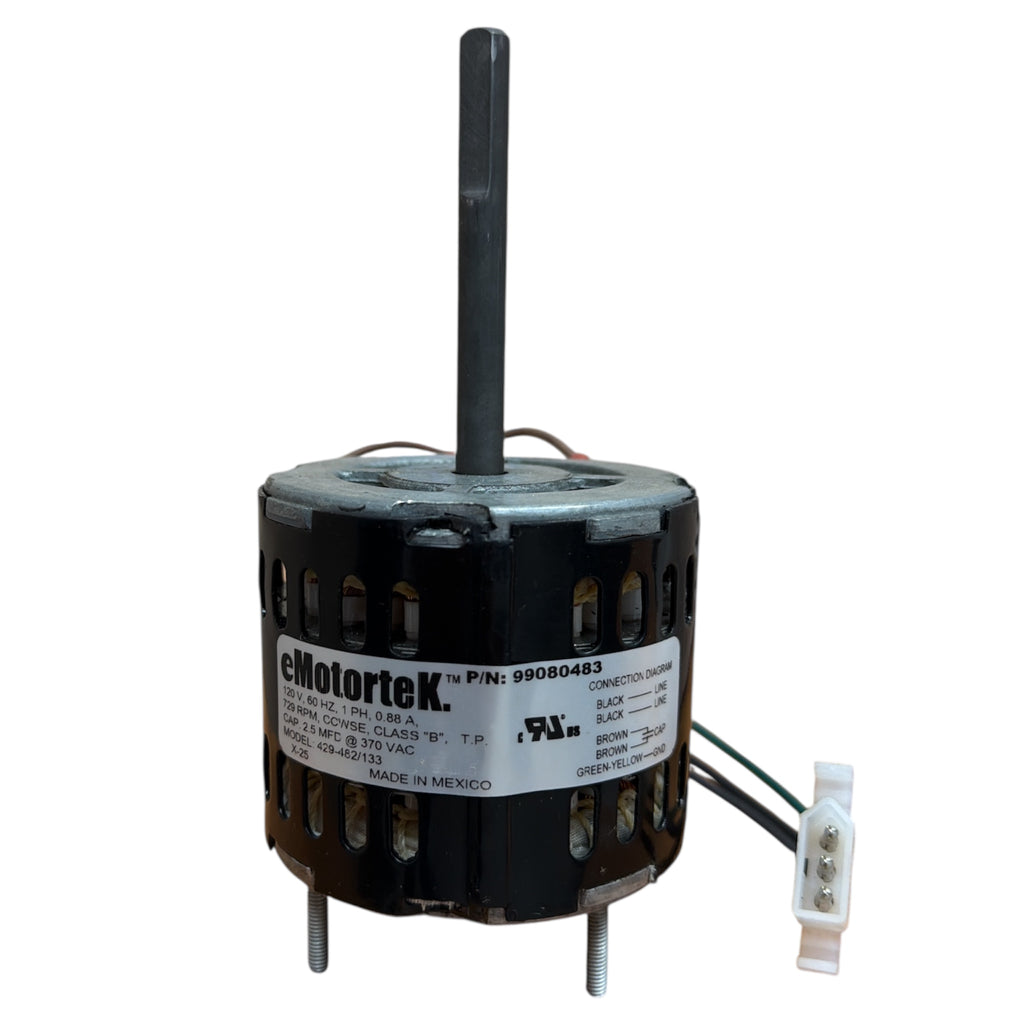

Description
- Type: Permanent Split Capacitor
- Horsepower :1/30
- Voltage :120
- Amps :0.88
- RPM :729
- Frequency :60 Hz
- Length :2-7/8 in
- Enclosure :Open
- Shaft Dim. :3/8 in x 3-1/4 in
- Type :Permanent Split Capacitor
- Speeds :1
- Frame Diameter :3.3 in
- Bearings :Ball
- Rotation : Counterclockwise Shaft End
- Protector :Thermally Protected
- Service Factor :1.00
- Phase :1
- Ambient Temp. :40°C
- Feature(s) : Class B Insulation, 4 Extended Bolts Opposite Shaft End, 3/8" Diameter Shaft with Flat, Capacitor Required: 2.5 Mfd-370 Volts (Supplied with Motor), Wire Harness Plug Included.
- Weight (lbs.) :4
- PLEASE NOTE: THE DESIGN OF THIS MOTOR HAS CHANGED FROM S.P. (SHADED POLE) TO P.S.C. (PERMANENT SPLIT CAPACITOR) FOR INCREASED EFFICIENCY THEREBY REDUCING THE MOTOR NAMEPLATE AMPS. TO 0.88 AND THE FULL LOAD RPM (SPEED) IN NOW INDICATED. THE BODY LENGTH ('A' DIMENSION) HAS BEEN REDUCED BUT THE SHAFT LENGTH HAS INCREASED TO COMPENSATE, THIS WILL ENSURE A PROPER FIT.
- Cross References: Broan Nutone S99080483, 2671513345, L200, L200L, L200MG, VQ100, S1108440 97014802 SI-511200-91R01BD0E, Universal Electric JA2Y043 JA2Y043N, OmniDrive 8214315164 429-482/133, Y4L403D22G Y4L403B22G Y4L403B254G, Xactone X99080483, B001YIDK8Q, B01N6P7HZN, B008SBWVZU, B01NCTY33U
