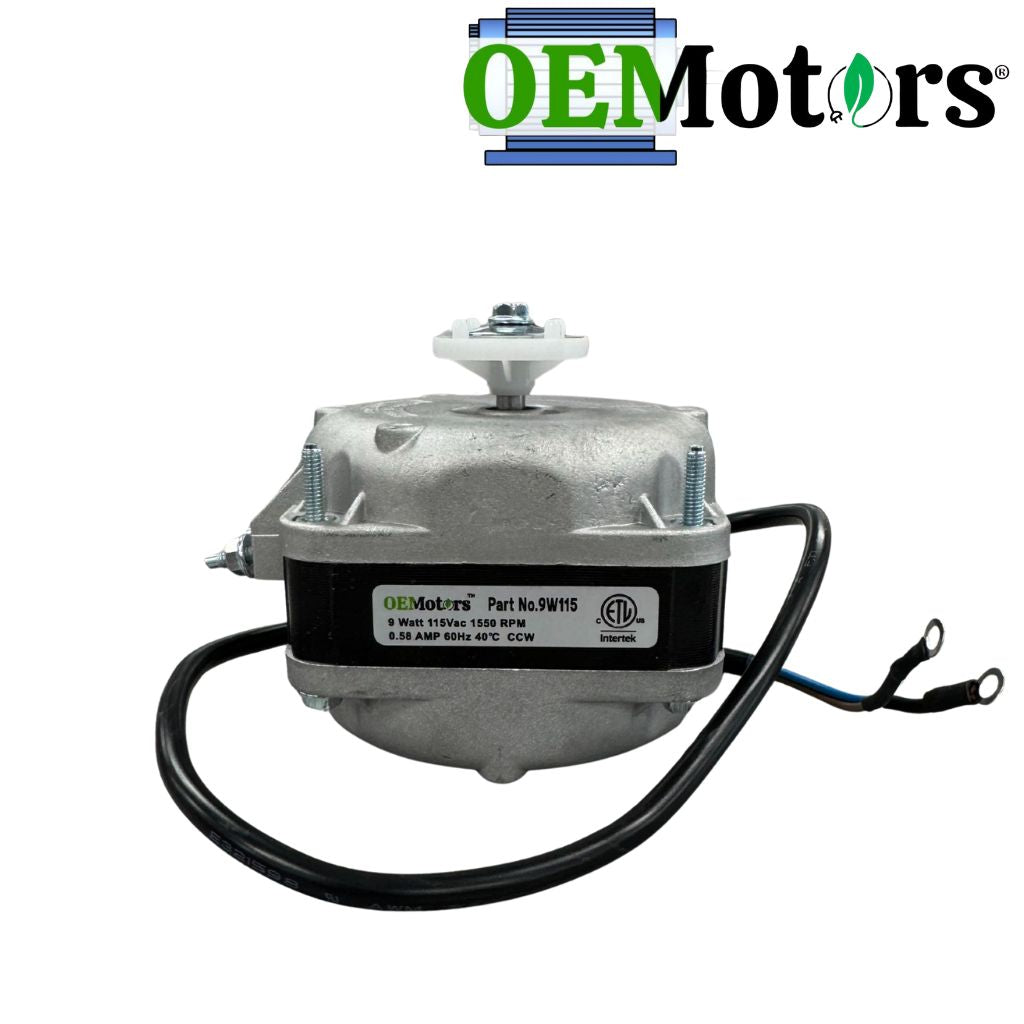

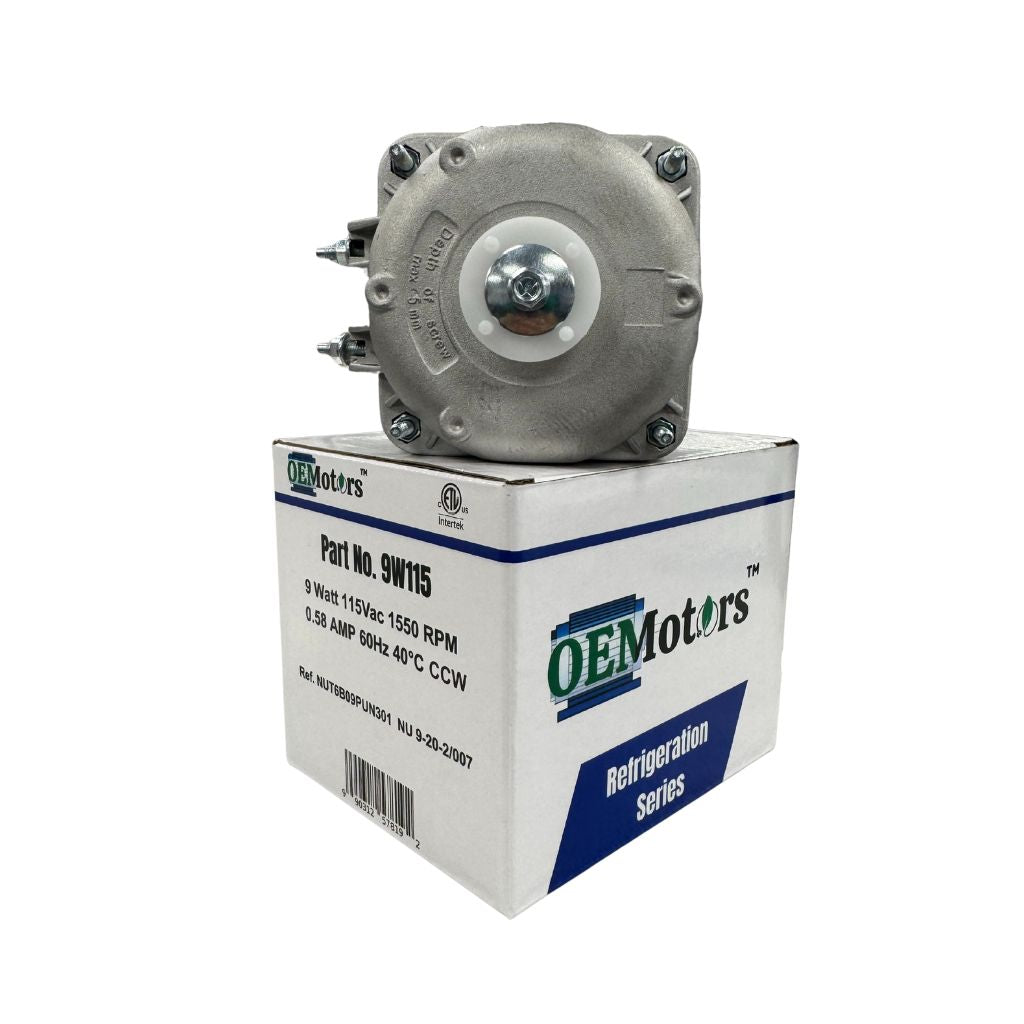

Description
- HP: 9W
- Voltage: 115
- RPM: 1550
- AMPs: 0.58
- Phase: 1
- Rotation: CCWSE
- Frame: Unit Bearing
- Enclosure: Totally Enclosed Air Over
- Speeds: 1
- Protector: Thermally Protected
-
Ambient Temp: 40°C
- Service Factor: 1.00
- Shaft Dimensions: 0.275" x 0.63" (Hubless)
- Frequency: 60Hz
- Diameter: 3.3"
- Length: 2.56"
- Bearings: Sleeve
- Features: Class "B" Insulation, 21-23" Leads with Ring Terminals, One Foot, Front Shroud, 3 Tapped Rear Holes
- Weight: 3lbs
- References: Elco EC9W115 EC-9W115 NET3T09PUN302 NUT6B09PUN301 NET2T09PUN301 NET2T09PUN306 NU9-20-2 NU9-20-2/007 NU9-20-2/732, Elco 82UL-2009, SS9W115, Tecumseh TFM91, EBM Papst M4Q045-CA17-04 M4Q045-CA27-04
