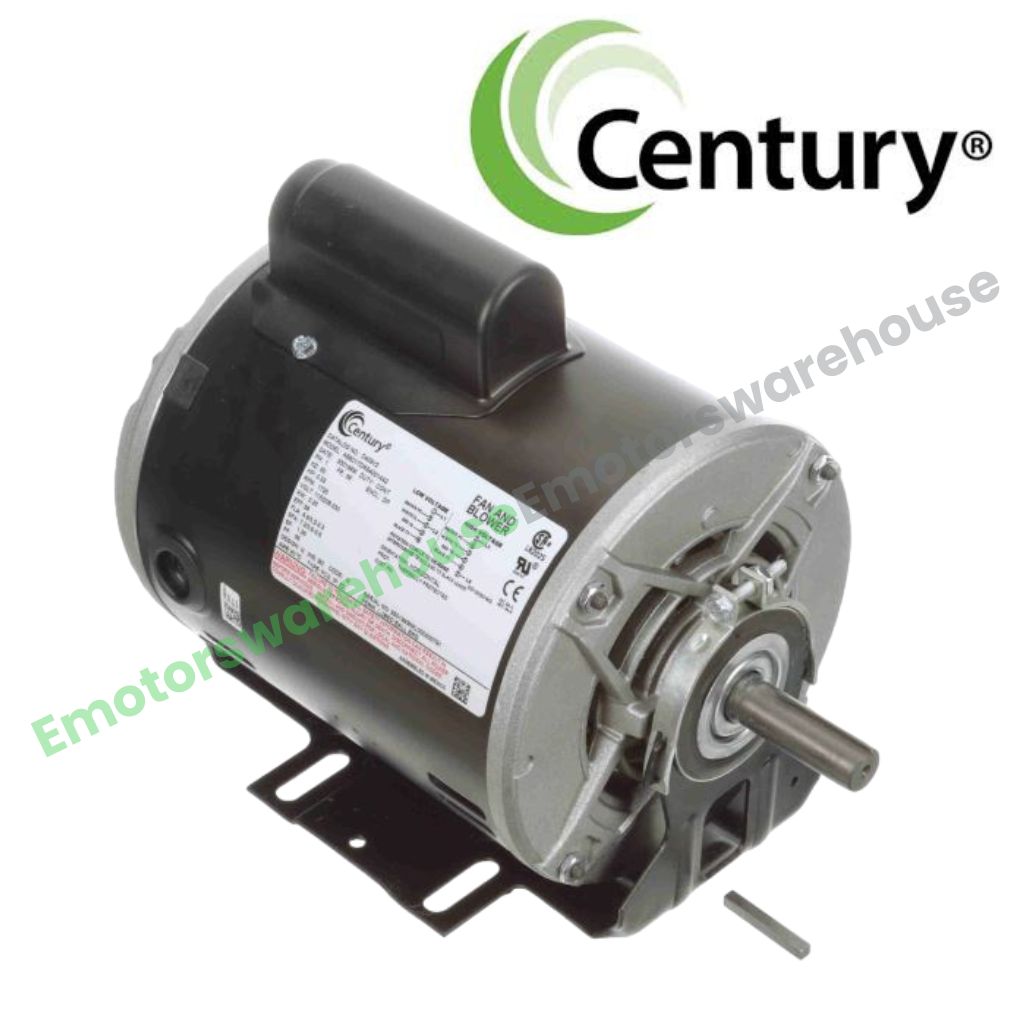

Description
Connection Diagram Dimensional Diagram
- HP: 1/3
- Voltage: 115/208-230
- RPM: 1800
- AMPs: 6.6/3.2-3.3
- Phase: 1
- Rotation: CCW/REV
- Frame: 56
- Enclosure: Open Drip Proof
- Speeds: 1
- Protector: Thermally Protected
- Ambient Temp: 40°C
- Service Factor: 1.35
- Shaft Dimensions: 5/8"X1.97"
- Frequency: 60Hz
- Diameter: 6-1/2"
- Length: 6.75"
- Bearings: Ball
- Features: Vertical/horizontal mounting for proper placement of the fan within airflow.
- Weight: 23
