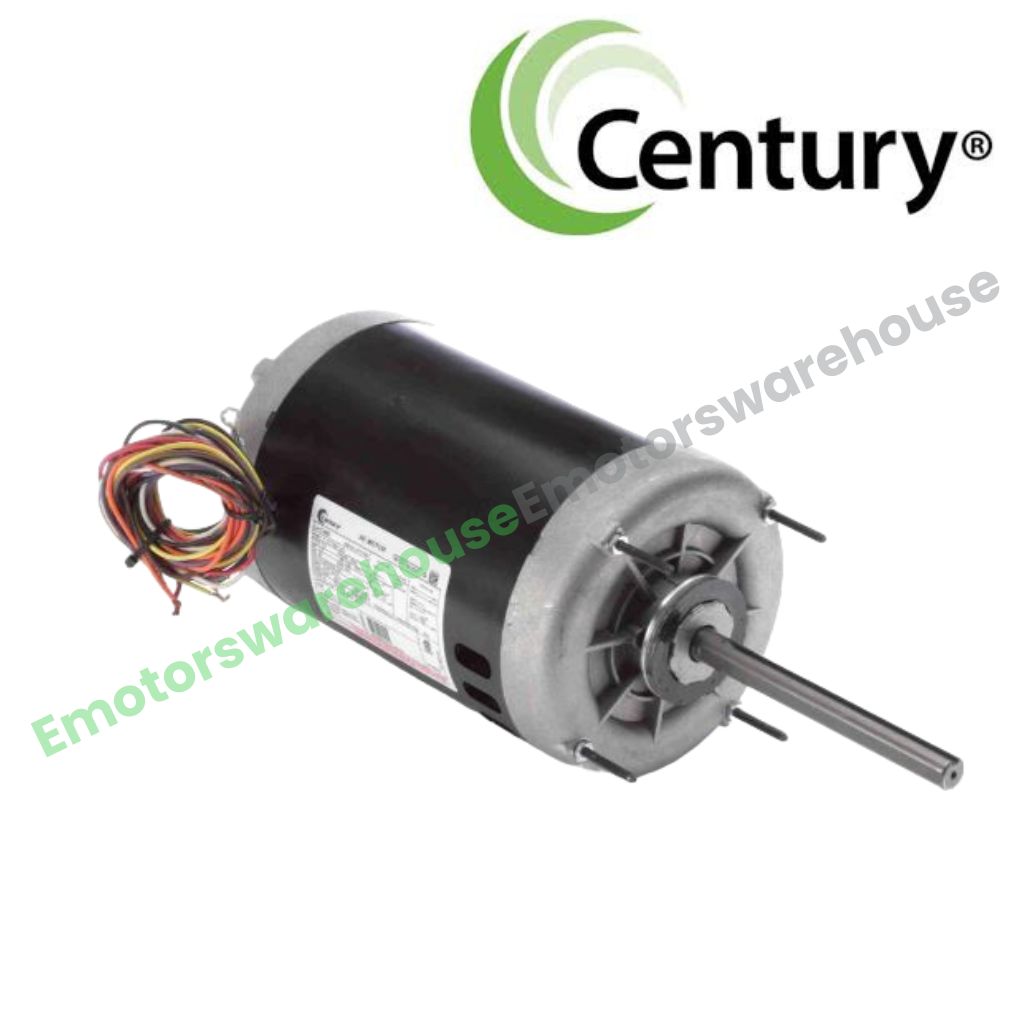

Century C490, HVAC/R Motors, Condenser Fan , Permanent Split Capacitor

Dimensional Diagram

• HP: 1
• Voltage: 460/200-230
• RPM: 825
• AMPs: 3.4/7.2-6.8
• Phase: 1
• Rotation: Reversible
• Frame: 56Z
• Enclosure: OPEN AIR OVER
• Speeds: 1
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 5/8"X6.00"
• Frequency: 60Hz
• Diameter: 6-1/2"
• Length: 7.50"
• Bearings: Ball
• Features: Class 'B' Insulation, Resilient mounting rings included, Thru-Bolts, 12.5MFD-370V CAPACITOR NOT SUPPLIED WITH MOTOR
• Weight: 41
• References: A.O. Smith 177691, Century 177691
