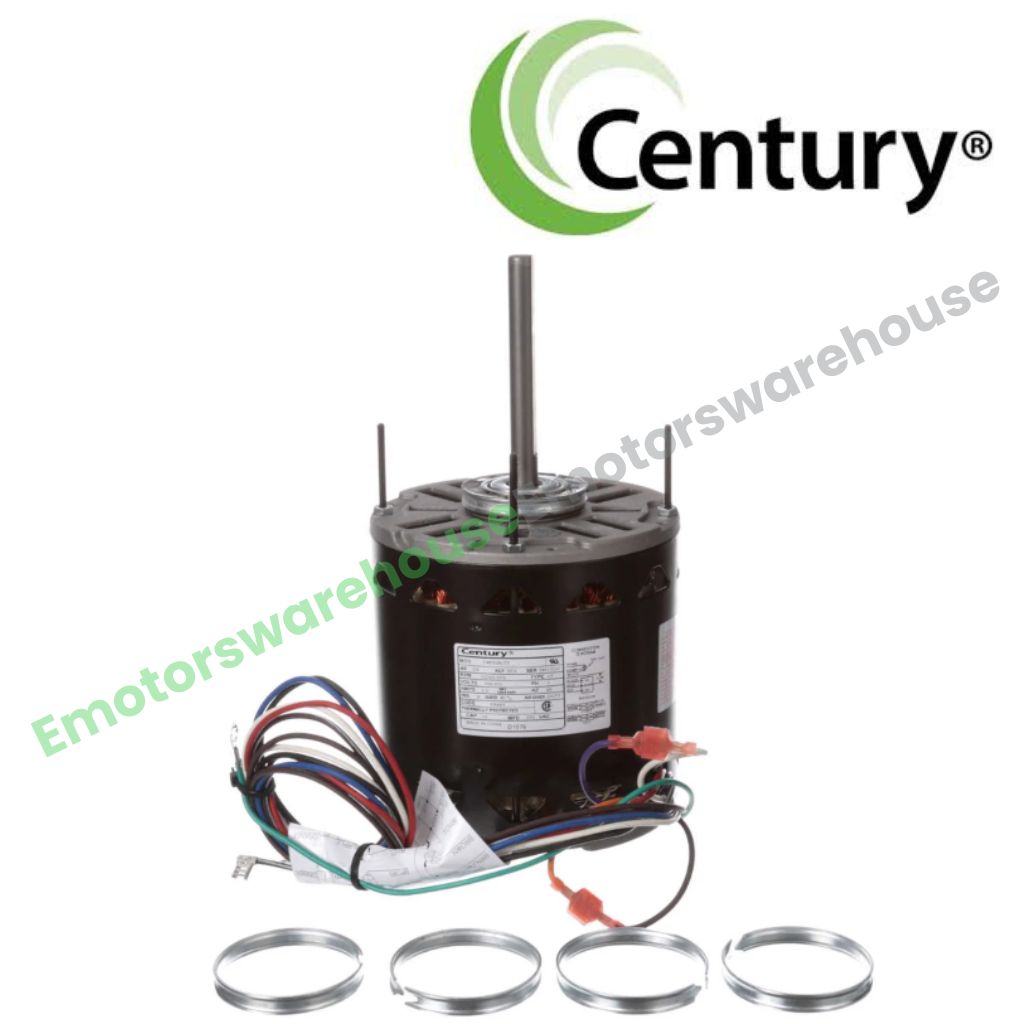

Description
Connection Diagram Dimensional Diagram
- HP: 3/4
- Voltage: 208-230
- RPM: 1075
- AMPs: 5.5
- Phase: 1
- Rotation: Reversible
- Frame: 48
- Enclosure: Open
- Speeds: 3
- Protector: Automatic
- Ambient Temp: 40°C
- Service Factor: 1.00
- Shaft Dimensions: 1/2" X 4.5"
- Frequency: 60Hz
- Diameter: 5.5"
- Length: 5.00"
- Bearings: Sleeve
- Features: Thru-Bolts, Class 'B' Insulation, 26" Leads
- Weight: 18
- References: A.O. Smith 323P954, A.O. Smith F48SN6L10, A.O. Smith F48SN6L2, A.O. Smith F48SN6MA7, A.O. Smith F48SN6V16, A.O. Smith F48SP6L7, A.O. Smith F48SQ6L13, A.O. Smith F48SQ6L31, A.O. Smith F48SQ6L41, A.O. Smith F48SQ6V40, A.O. Smith F48SR6V6, Carrier/BDP HC45MF231, Carrier/BDP P257-3990, Carrier/BDP P257-8990, Emerson 8900, Emerson K3845, Fasco D729, GE 3973, GE 3990, Dayton 3M820, Dayton 3M858, Dayton 3M913, Johnstone Supply S88-251, Leece Neville RE117, Marathon W48A1102046, Marathon X010, Rheem/Protech 512302731, Universal Electric 488, A.O. Smith F48SP6L1, A.O. Smith 323P254, A.O. Smith 488, A.O. Smith 48SQ6V45, A.O. Smith D1076, A.O. Smith F48A63A34, A.O. Smith F48C09A02, A.O. Smith F48C44A02, A.O. Smith F48G56A76, A.O. Smith F48G60C04, A.O. Smith F48J65C04, A.O. Smith F48K67A48, A.O. Smith F48L31A50, A.O. Smith F48L49A50, A.O. Smith F48P44A38, A.O. Smith F48SQ6L32, A.O. Smith F48SQ6L73, A.O. Smith F48SQ6L73X, A.O. Smith F48SQ6V25, A.O. Smith F48SQ6V26, A.O. Smith FD1076, Carrier/BDP HC41SE651A, Carrier/BDP P257-3590, Carrier/BDP P257-8590, Emerson 8905, Emerson K55HXCKH9728, Emerson K55HXEPZ7946, Emerson K55HXFRY3588, Emerson K55HXLPB6114, Emerson K8900, Emerson KA55HXCKH9728, Emerson KA55HXSHJ9825, Franklin F-001, GE 3590, GE 5KCP33PG557, GE 5KCP39GGE414, GE 5KCP39MG500, GE 5KCP39PG9220, GE 5KCP39PGA743, GE 5KCP39PGB641, GE 5KCP39PGD831, GE 5KCP39PGE117, GE 5KCP39PGE122, GE 5KCP39PGE414, GE 5KCP39PGE514, GE 5KCP39PGE676, GE 5KCP39PGE697, GE 5KCP39PGF140, GE 5KCP39PGF839, GE 5KCP39PGF883, GE 5KCP39PGG743, GE 5KCP39PGN658, Dayton 3M222, Dayton 4KA39, Dayton 4M184, Dayton 4M590, Johnstone Supply S88-561, Johnstone Supply S88-741, Johnstone Supply S88-812, Johnstone Supply S88-882, Leland Faraday EM3-990, Marathon 48A110694B, Marathon X237, Packard 63990, Rheem/Protech 198040100, RMR R3973, Rotom R43590, Trane MOT 1051, Trane MOT 1715, Trane MOT 1973, Trane MOT 2093, Trane MOT 2094, Trane MOT 2412, Trane MOT 6124, Trane MOT 6137, Trane MOT 785, Universal Electric 0679, Universal Electric 679, Universal Electric HE3L023, Universal Electric HE3L058, Universal Electric HE3L066, Universal Electric HE3L071, Universal Electric HE3L072, Universal Electric HE3L073, Universal Electric HE3L077, Universal Electric HE3L078, Universal Electric HE3L088, Universal Electric HE3L106, Universal Electric HE3L111, Universal Electric HE3L151, Universal Electric HE3L166, Universal Electric HE3L7066, Universal Electric HE3T012, Universal Electric HE3T018, Universal Electric HE3T026, York 024-25985, York 024-26044, York 024-27882-000, York 1468-242, Carrier/BDP P257-8390, Fasco D730, Rheem/Protech 512443590
