Description

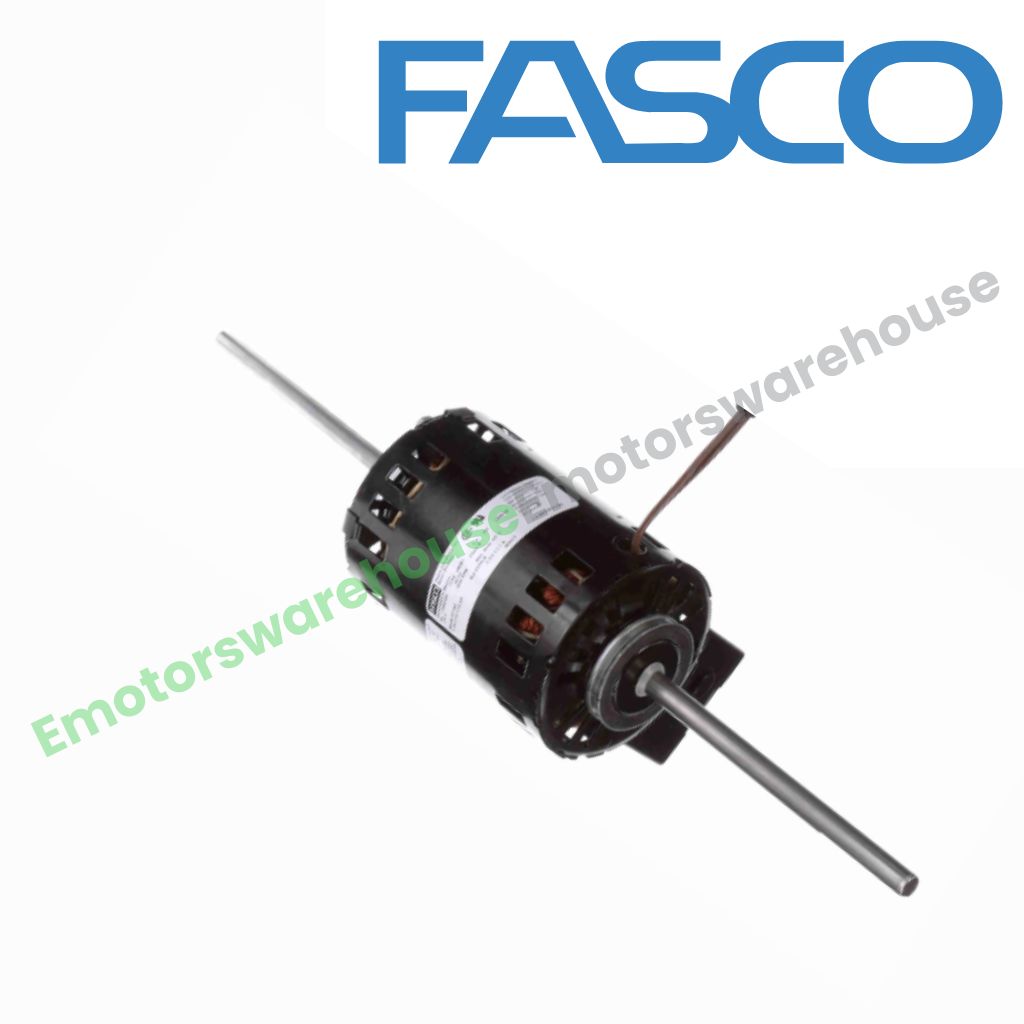

- ype : Permanent Split Capacitor
- HP : 1/10
- Voltage : 115
- RPM : 1500
- Current (Amp) : 2.20
- Phase : 1
- Rotation : Counterclockwise Shaft End
- Frame : 3.3
- Enclosure : Open Air Over
- Speeds : 3
- Protector : Thermally Protected
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.375 in X 5.625 in
- Frequency : 60Hz
- Diameter : 3.3 in
- Frame Length : 4.51 in
- Bearings : Sleeve
- Capacitor Rating : 7.5-44
- Features : Class B Insulation, 8" Leads, Resilient Ring Mounting, Double Shaft with Flat, Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Cross Reference: 879-382564B-00
