Description

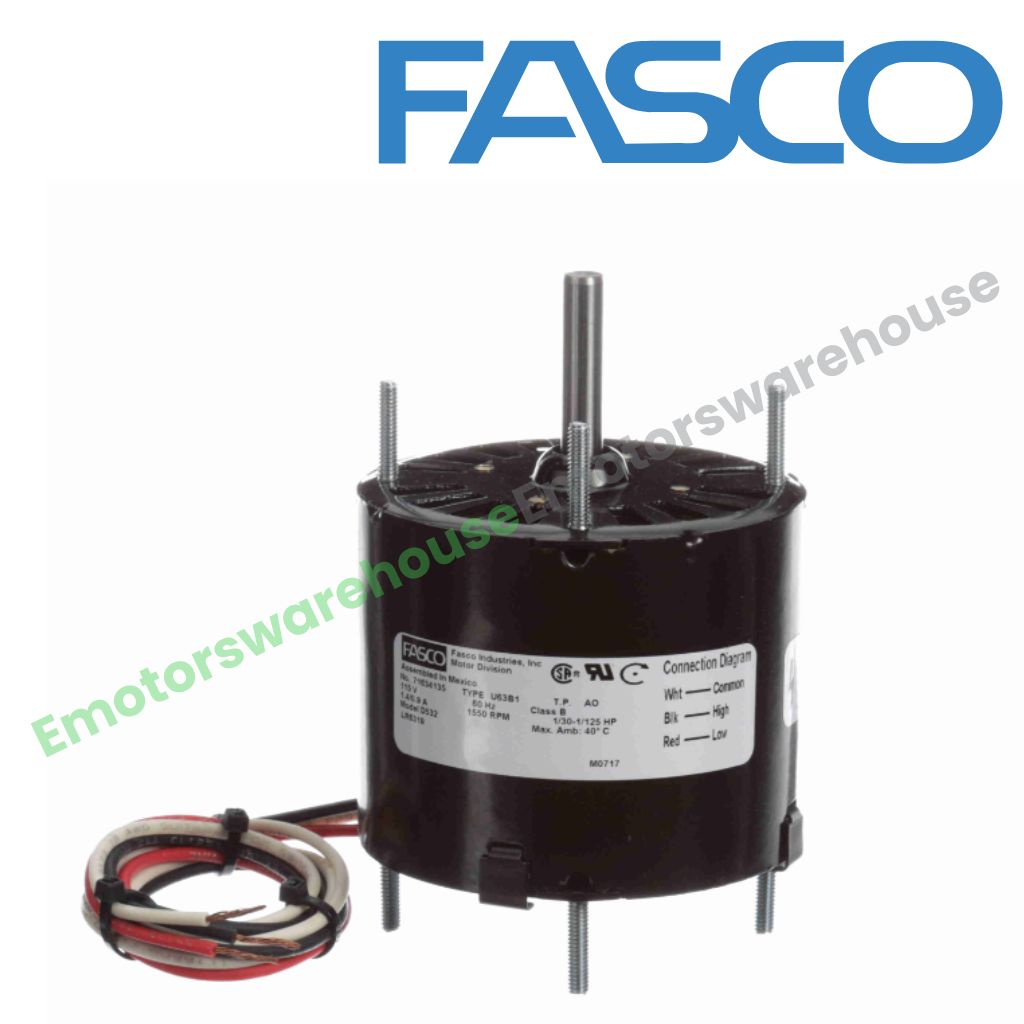

Fasco D532 shaded pole motor, 1/30 HP, 115 V, 1550 RPM, 2-speed, 3.3" frame, extended studs on both ends. Replaces Fasco 7163-2888, 7163-3697, 7163-4135 and 7163-4719, Rotom R455 and Universal Electric AA2G series.
Specifications
| Type | Shaded pole |
| HP | 1/30 |
| Voltage | 115 V |
| RPM | 1550 |
| Amps | 1.40 A |
| Phase | 1 |
| Speeds | 2 |
| Rotation | Clockwise shaft end |
| Frame / diameter | 3.3" |
| Frame length | 2.57" |
| Enclosure | Open air over |
| Protector | Thermally protected |
| Ambient temperature | 40°C |
| Service factor | 1.00 |
| Shaft | 5/16" x 1.50" |
| Frequency | 60 Hz |
| Bearings | Sleeve |
| Insulation | Class B |
| Mounting | Extended studs, shaft end and lead end |
| Leads | 21" |
Replaces these part numbers
- Fasco: 7163-2888, 7163-3697, 7163-4135, 7163-4719
- Rotom: R455
- OmniDrive: SS028
- Universal Electric: AA2E045, AA2E142, AA2F066, AA2F067, AA2F069, AA2F071, AA2F096N, AA2G017, AA2G020, AA2G040K, AA2G042, AA2G043, AA2G052, AA2G077F, AA2G078F, AA2G111, AA2G113, AA2G129
- Other numbers: 122F071
Warranty and shipping
- 1-year warranty against manufacturer defects
- 30-day returns
- Orders placed before 2:00 PM ET on a business day start processing the same day
