Description

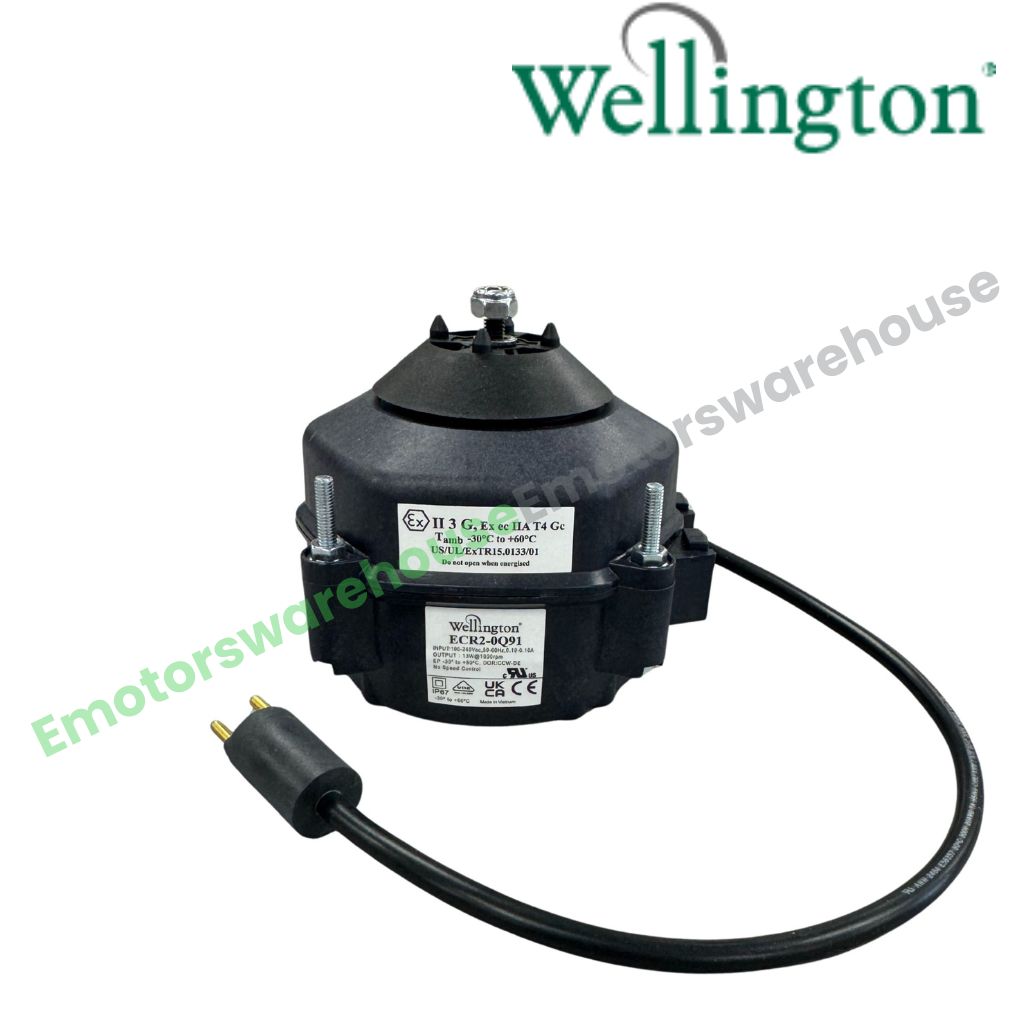

Wellington ECR2-0Q91 ECM refrigeration fan motor, an energy-saving replacement for Wellington ECR01A0241, ECR01A0242 and ECR01A0122, and for Elco-type motors. 70-264 V, 1550 RPM, IP67.
Specifications
| Type | ECM |
| Power | 0-13 W |
| Voltage | 70-264 V AC |
| RPM | 1550 |
| Amps | 0.19/0.10 A |
| Phase | 1 |
| Speeds | 1 |
| Rotation | Counterclockwise shaft end |
| Frame | Unit bearing |
| Enclosure | Totally enclosed air over |
| Protection | IP67 |
| Protector | Thermally protected |
| Ambient temperature | -30°C to +50°C |
| Service factor | 1 |
| Shaft | Hubless |
| Frequency | 50/60 Hz |
| Bearings | Ball |
| Connection | Lyall plug |
Replaces these part numbers
- Wellington: ECR01A0241, ECR01A0242, ECR01A0122
