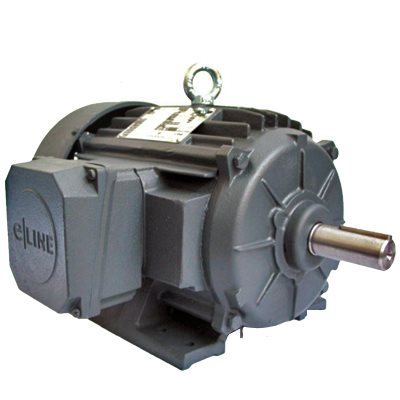

Description
- Type : Three Phase
- HP : 10
- Voltage : 575
- RPM : 3450
- Current (Amp) : 9.10
- Phase : 3
- Rotation : Reversible
- Frame : 215T
- Enclosure : Totally Enclosed Fan Cooled
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 40°C
- Service Factor : 1.30
- Shaft Dimensions : 1.375 in X 3.38 in
- Frequency : 60/50Hz
- Diameter : 9.0 in
- Frame Length : 22.07 in
- Bearings : Ball
- Features: Class 'F' Insulation, Rigid Base, Field convertible to F-2 mounting / Field convertible C flange kits available, DOE Compliance Certification / CE mark on nameplate, CSA Self Certified Class I, Division 2, Group D, T2B, Full 50 Hz power at rated HP / CSA® 390 Certified / UL® Component Recognized, Dual Voltage nameplated @ 60Hz and 50 Hz, Stainless steel nameplate and zinc plated hardware, Corrosion resistant mill & chemical duty paint, Suitable for wye-delta start on 210T frame and larger, Shaft seal V-ring for IP55 protection, Nema® design B performance, VPI, Class F insulation system, B rise at full load on sine wave power, Double drilled feet to accommodate mounting flexibility, Double shielded bearings of same size on both ends, Inverter Grade® insulation system to meet NEMA MG-1 Part 31 Specification, Fully comply with EISA and NRCan efficiency standards
- Weight: 188 lbs
