Description

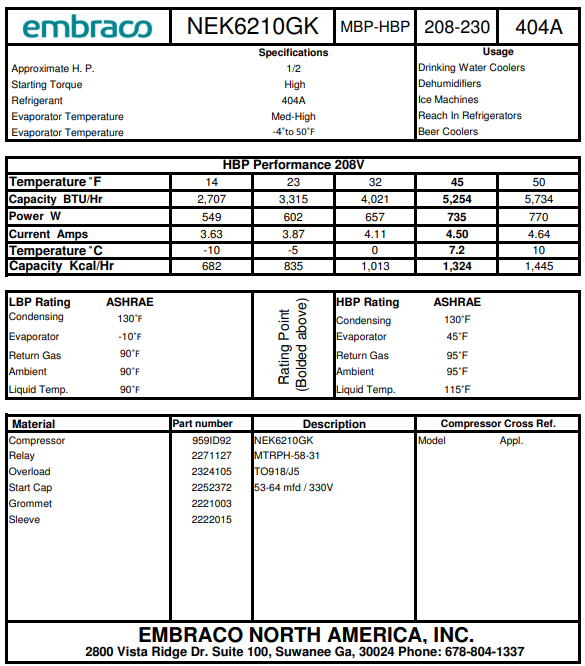

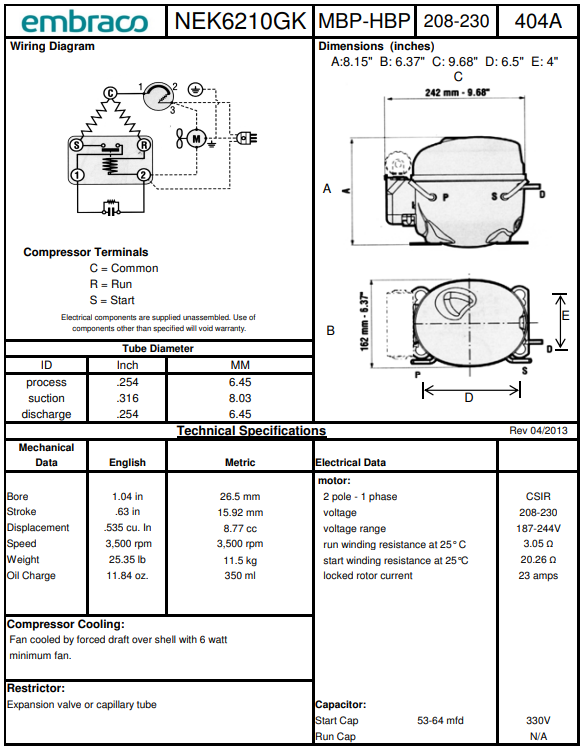

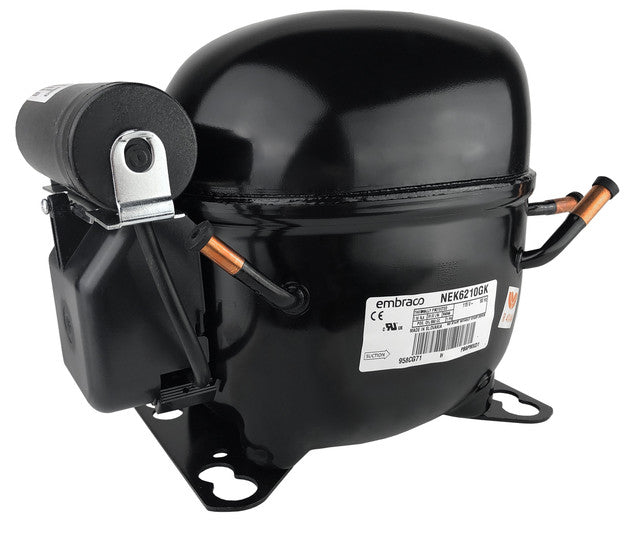

Key Specifications (NEK6210GK2/NEK6210GK):
Application: MBP/HBP (Medium/High Back Pressure)
Refrigerant: R-404A
Horsepower: 1/2 HP
Voltage/Frequency: 208-230V / 60 Hz
Displacement: 8.78 cm³ /
Motor Type: CSIR
Capacity: ~5355 Btu/h (at nominal conditions)
Starting Torque: High (HST)
Oil Type: Polyol Ester (POE 22)
Oil Charge: 350 ml
Weight: ~27 lbs (11-12 kg)
Dimensions: ~9.68-in L x 6.37-in W x 8.50-in H
Applications & Performance:
Use Cases: Commercial display cabinets, upright freezers, and supermarket coolers.
Cooling Requirement: Fan-cooled (forced air).
Expansion Device: Capillary tube or expansion valve.
Compatible Parts/Reference:
Often used as a replacement for Copeland ASE26C4E-CAV or other equivalent 1/2 HP, R404A compressors.
