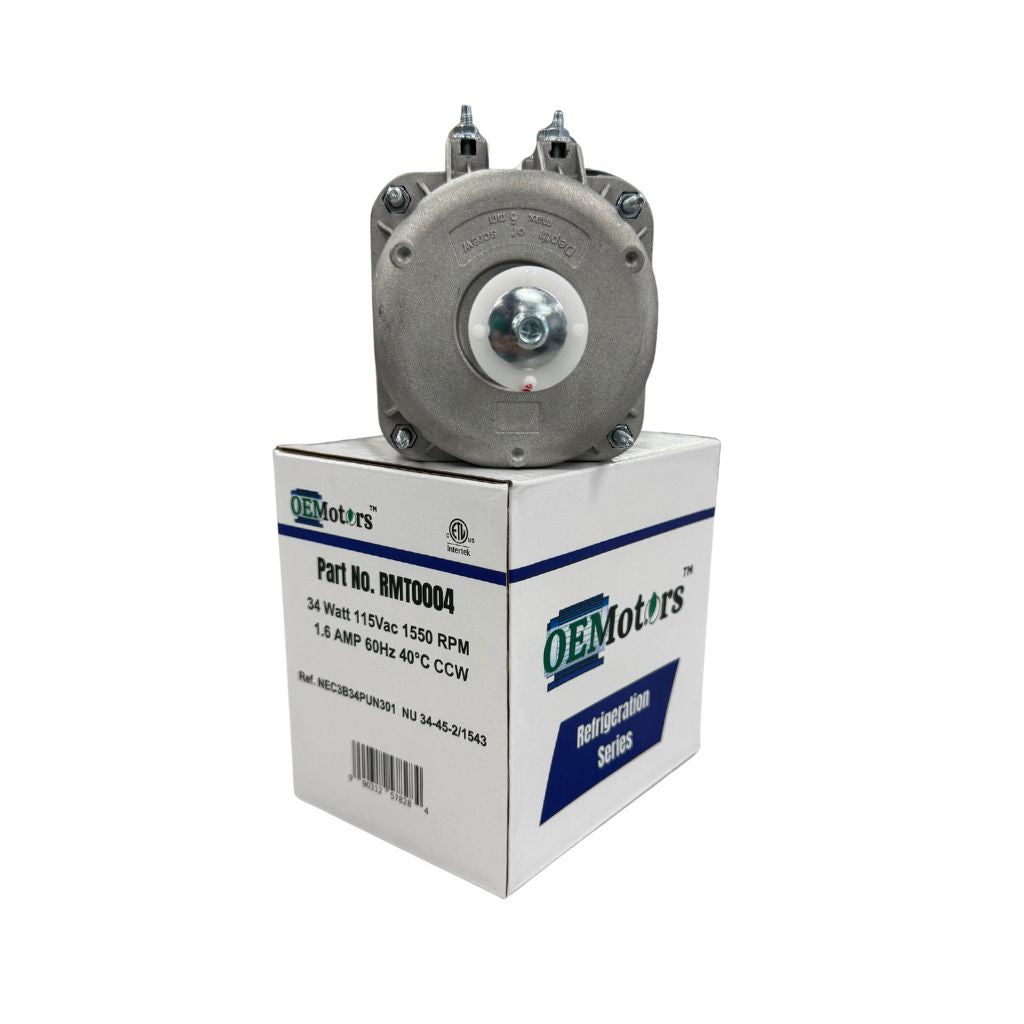

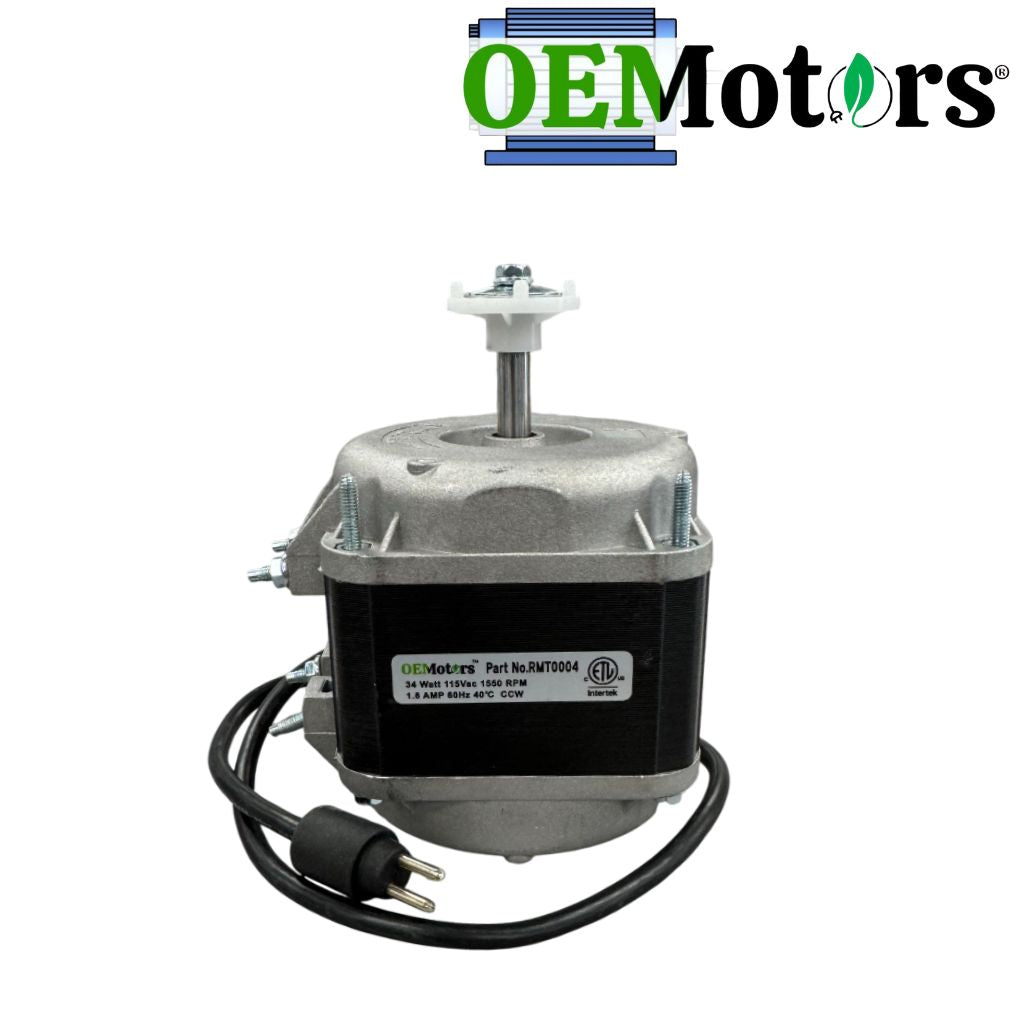

Name: RMT0004 HVAC/R Motors, OEM Replacement
Brand: OEMotors
SKU: RMT0004
Price: 154.40 CAD
Availability: InStock

Due to the uncertainty in cross-border shipment regulations to the U.S., all duties on parcel shipments will temporarily be the responsibility of the receiver until further notice. Any duties applicable to the invoice will be paid by the recipient to the carrier upon delivery. The carrier will contact you for any required information and follow-ups. We appreciate your understanding. Please refer to our Policy.

Roll over image to zoom in Click on image to zoom

HP: 34W
Voltage: 115
RPM: 1550
AMPs: 1.6
Phase: 1
Rotation: CCWSE
Frame: Unit Bearing
Enclosure: Totally Enclosed Air Over
Speeds: 1
Protector: Sensata 150°C Cut-Off
Ambient Temp: 40°C
Service Factor: 1.00
Shaft Dimensions: 0.275" X 1.16" (Hubless)
Frequency: 60Hz
Diameter: 3.3"
Length: 3.58"
Bearings: Sleeve
Weight: 6 lbs
Features: Class B Insulation, Shaft with 4 End-Stud, 21-23 in Leads with Lyall 2 Pins Plug, One Foot, Front Shroud, 3 Tapped Rear Holes
References: Elco EC34W115-V1543, Elco NU34-45-2/057 NU34-45-2/1305 NU34-45-2/1543, Elco NEC3B34PUN301, 8214315170, RefPlus RMT0004
