Description

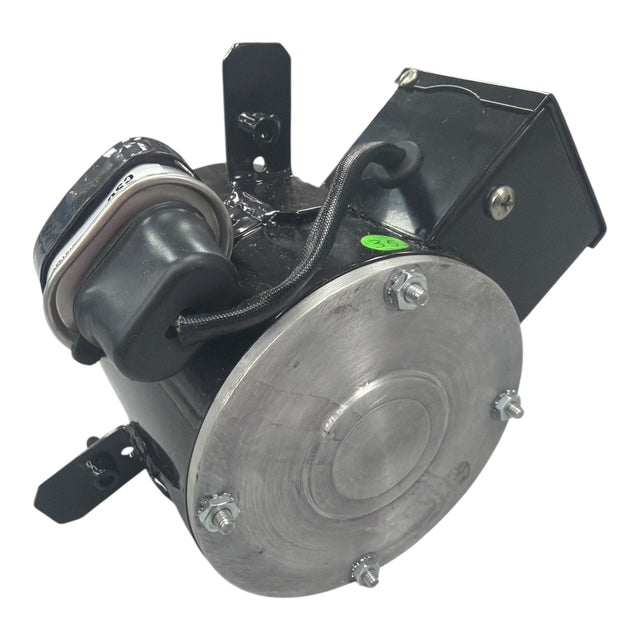

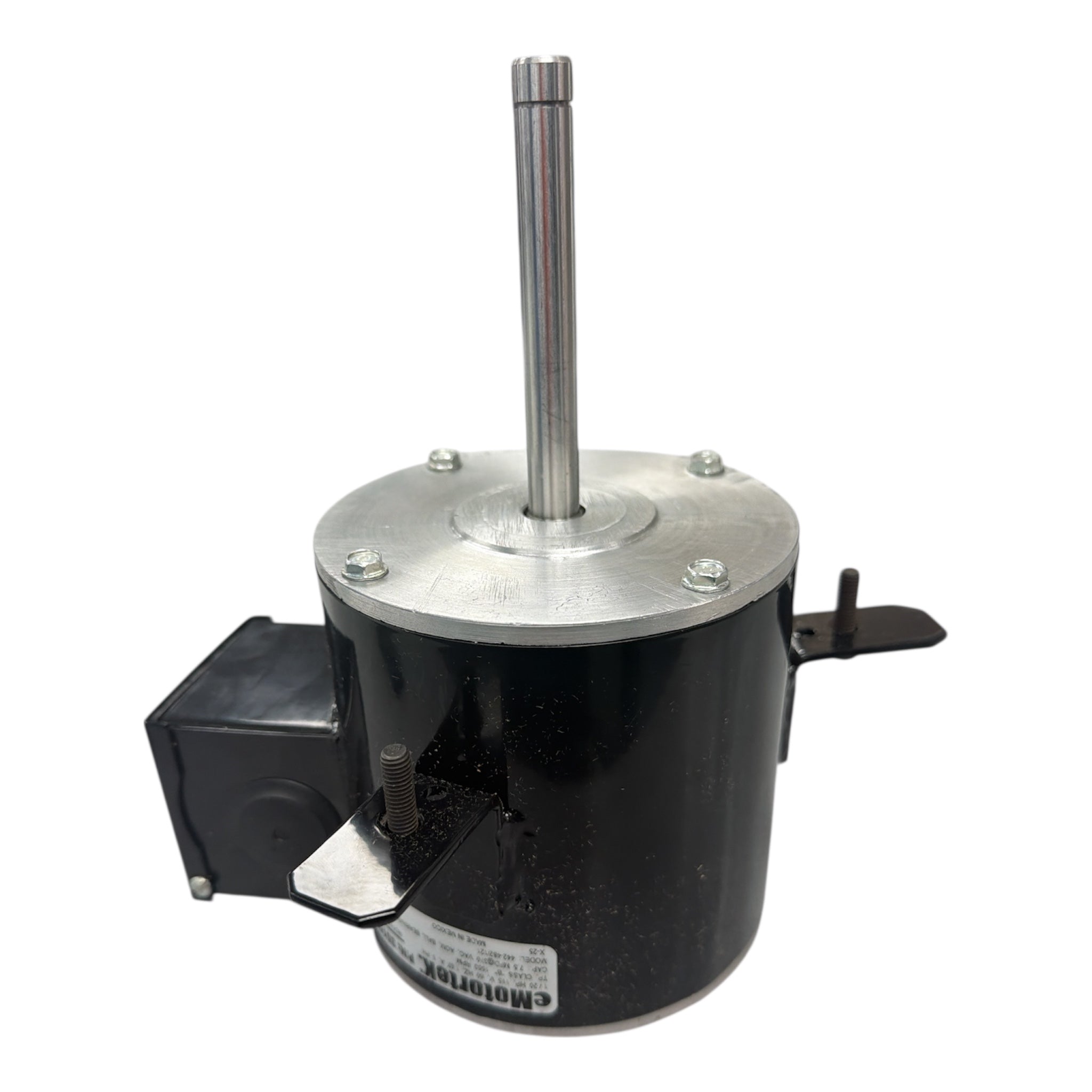

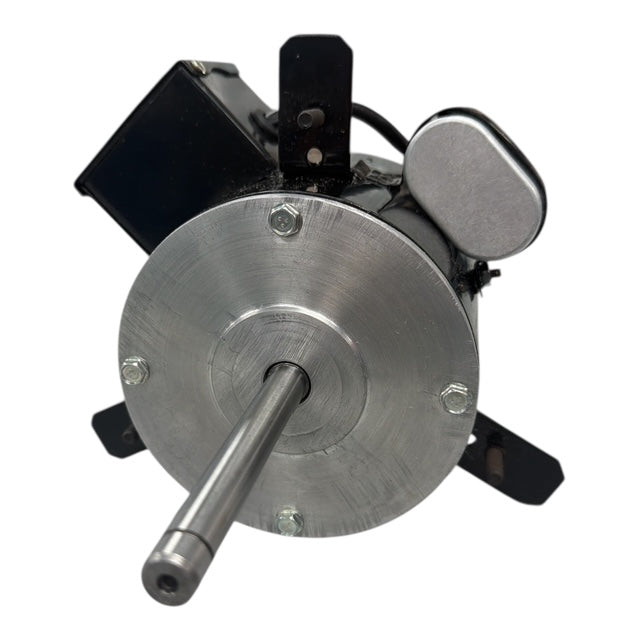

Replacement motor for Elco 3RGMU45-20/1 (EC-AF-1586, 40101586). 1/20 HP, 115 V, 1550 RPM, 2-speed, totally enclosed, 3-lug mount, ball bearings.
Specifications
| HP | 1/20 |
| Voltage | 115 V |
| RPM | 1550 |
| Amps | 1.07 A |
| Phase | 1 |
| Speeds | 2 |
| Rotation | Clockwise shaft end |
| Frame / diameter | 4-5/8" |
| Length | 4.64" |
| Enclosure | Totally enclosed |
| Protector | Automatic |
| Ambient temperature | 40°C |
| Service factor | 1.00 |
| Shaft | 1/2" x 3-29/32" |
| Frequency | 60 Hz |
| Bearings | Ball |
| Mounting | No base, 3-lug mount |
| Insulation | Class B |
| Weight | 11 lb |
Replaces these part numbers
- Elco: 3RGMU45-20/1, EC-AF-1586, ECAF1586, 40101586, 4010751, 4010752
- Rosemex: UHM20AOS
- Universal Electric: CE2D013N
