Description

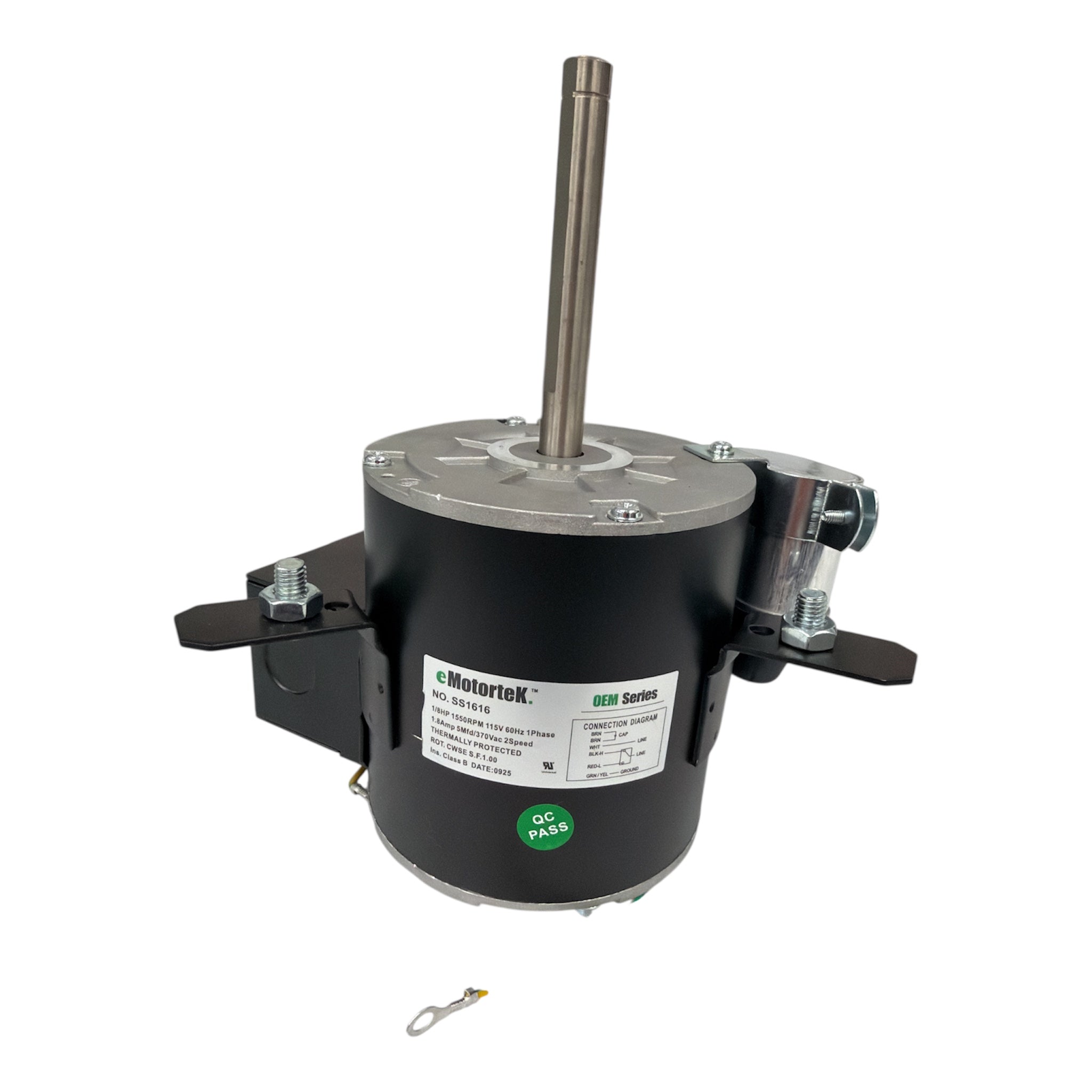

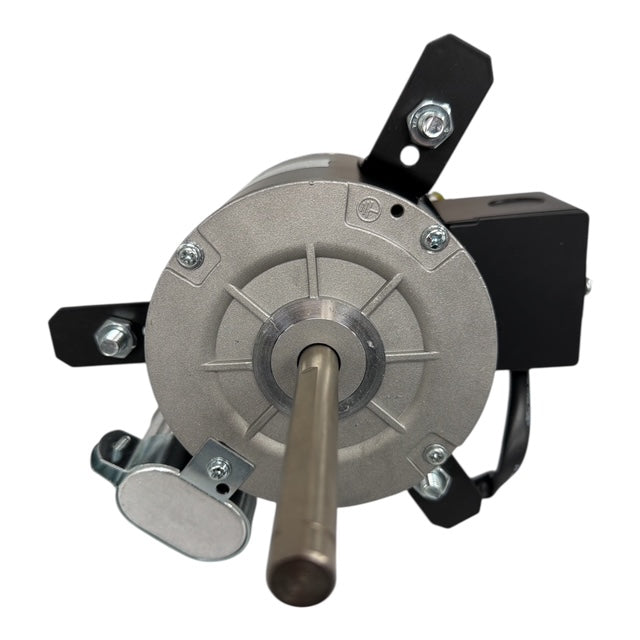

Replacement motor for Elco 3RGMU90-50-2V/1 (EC-AF-1616, 40101616), used in Rosemex UHM12AOS. 1/8 HP, 115 V, 1550 RPM, totally enclosed, 3-lug mount, ball bearings.
Specifications
| HP | 1/8 |
| Voltage | 115 V |
| RPM | 1550 |
| Amps | 1.8 A |
| Phase | 1 |
| Speeds | 1 |
| Rotation | Clockwise shaft end |
| Frame | 42 |
| Diameter | 5-5/8" |
| Length | 5-5/8" |
| Enclosure | Totally enclosed |
| Protector | Automatic |
| Ambient temperature | 40°C |
| Service factor | 1.00 |
| Shaft | 1/2" x 3-1/2" |
| Frequency | 60 Hz |
| Bearings | Ball |
| Mounting | No base, 3 lugs included |
| Insulation | Class B |
| Weight | 15.4 lb |
Replaces these part numbers
- Elco: 3RGMU90-50-2V/1, EC-AF-1616, 40101616
- Rosemex: UHM12AOS
- Universal Electric: CE2F019N
- Other numbers: 442-482/122
Warranty and shipping
- 1-year warranty against manufacturer defects
- 30-day returns
- Orders placed before 2:00 PM ET on a business day start processing the same day
