Description

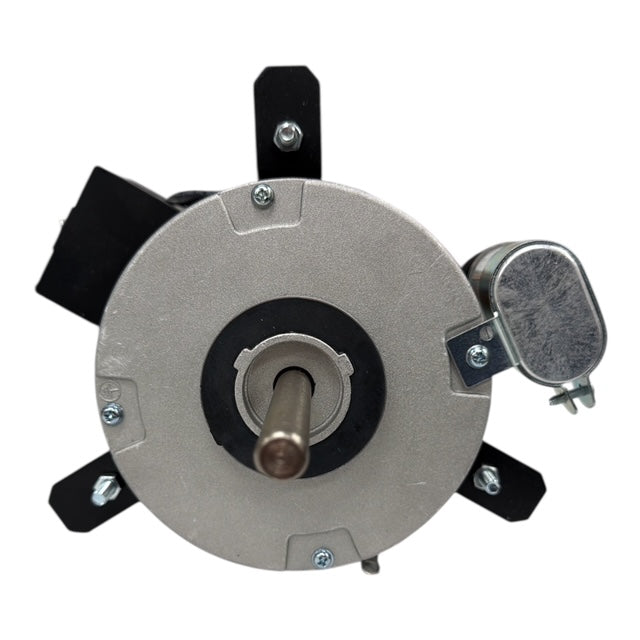

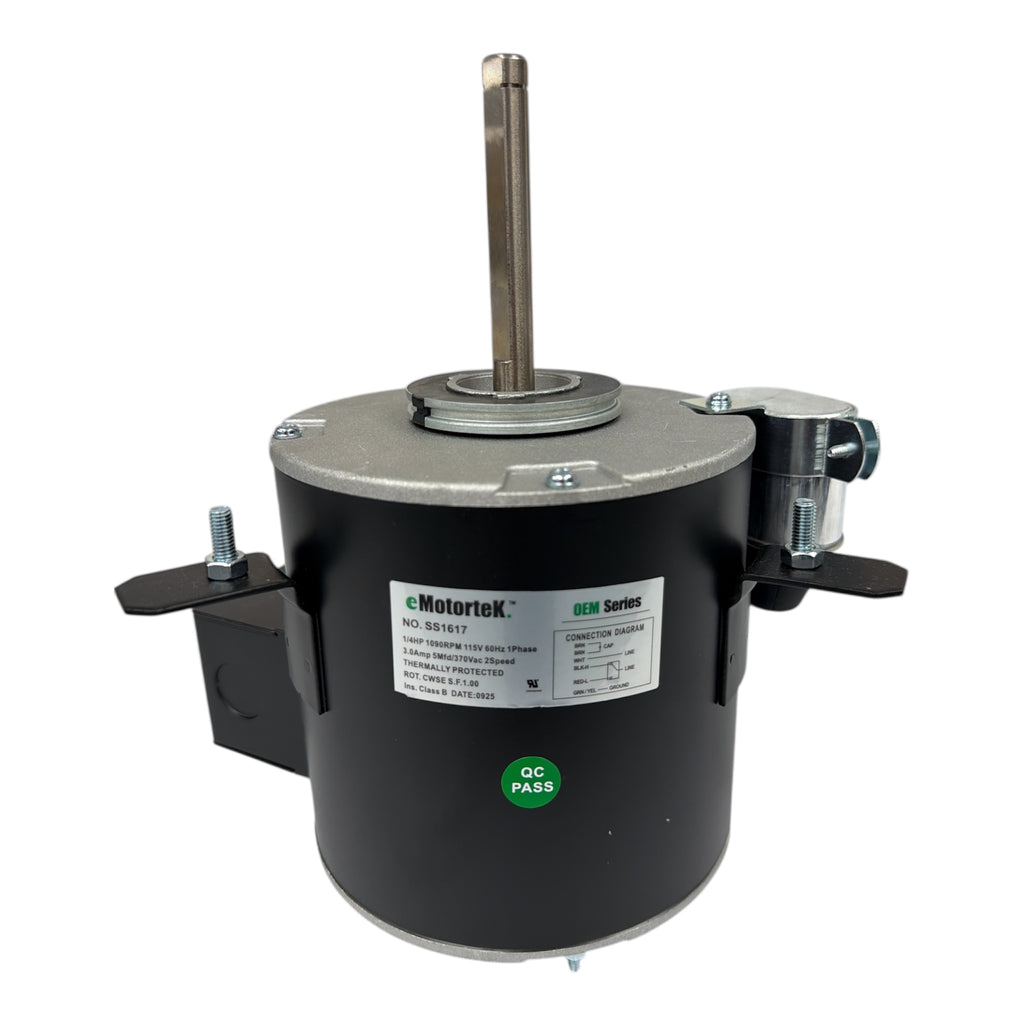

Replacement OEM motor for Elco ECA-1617, EC-AF-1617 and Rosemex EA 01038. 1/4-1/8 HP, 115 V, 1090 RPM, 1 speed, ball bearings.
Specifications
| HP | 1/4-1/8 HP |
| Voltage | 115 V |
| RPM | 1090 |
| Amps | 2.52 A |
| Phase | 1 |
| Speeds | 1 |
| Rotation | Clockwise shaft end |
| Frame / diameter | 48 / 5-5/8" |
| Length | 5-5/8" |
| Enclosure | Totally Enclosed |
| Protector | Automatic |
| Ambient temperature | 40 °C |
| Service factor | 1.00 |
| Shaft | 1/2" × 3-1/2" |
| Frequency | 60 Hz |
| Bearings | Ball |
| Weight | 15.4 lb |
No-Base, Class 'B' Insulation, 3 Lugs Included
Replaces these part numbers
- Elco: 3FGMU145-70-6-2V/1, EC-AF-1617, 40101617, ECA-1617, ECAF1617
- Rosemex: EA 01038
- Universal Electric: DE3G139N
