Description

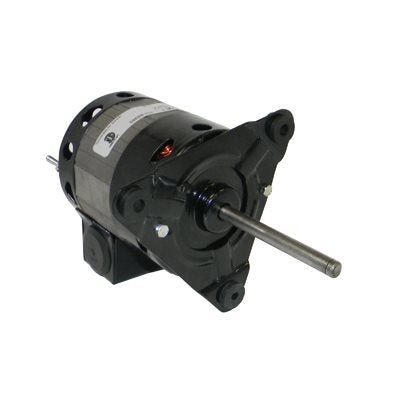

- Type : Shaded Pole
- HP : 1/25
- Voltage : 115
- RPM : 1550
- Current (Amp) : 1.50
- Phase : 1
- Rotation : Clockwise Shaft End
- Frame : 3.3
- Enclosure : Open
- Speeds : 1
- Protector : Thermally Protected
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.3125 in X 3.28 in
- Frequency : 60Hz
- Diameter : 3.3 in
- Frame Length : 3.78 in
- Bearings : Ball
- Features: Triangular Bracket Shaft End, Conduit Box
- Cross References: Electrohome 17-51-12-03FA, 17-51-12-04, 17-51-12-05, 17-51-12-06, 17-51-12-07, 17-51-12-08, 17-54-12-06, Electrohome 2828-511-204 2828-511-205 2828-511-404 2828-541-211 2868-513-004 2868-513-009 2868-513-010 2868-513-017 2868-513-018 2868-513-021 2868-513-067 2868-513-115 2868-513-131 2868-513-146 2868-813-002 2868-513-005, Electrohome 2N2101 SM303, Fasco D1173, Franklin 76303 8211117260 8214117229 8214117219 AK4L142A AK4L195A AK4L50A AK4L60A AK4L61A, MacMillan 8214115071 8214115164, Rotom R303, Trane X75270010-010, Universal Electric AB2R001 AB2R5556 JA2N291
