Description

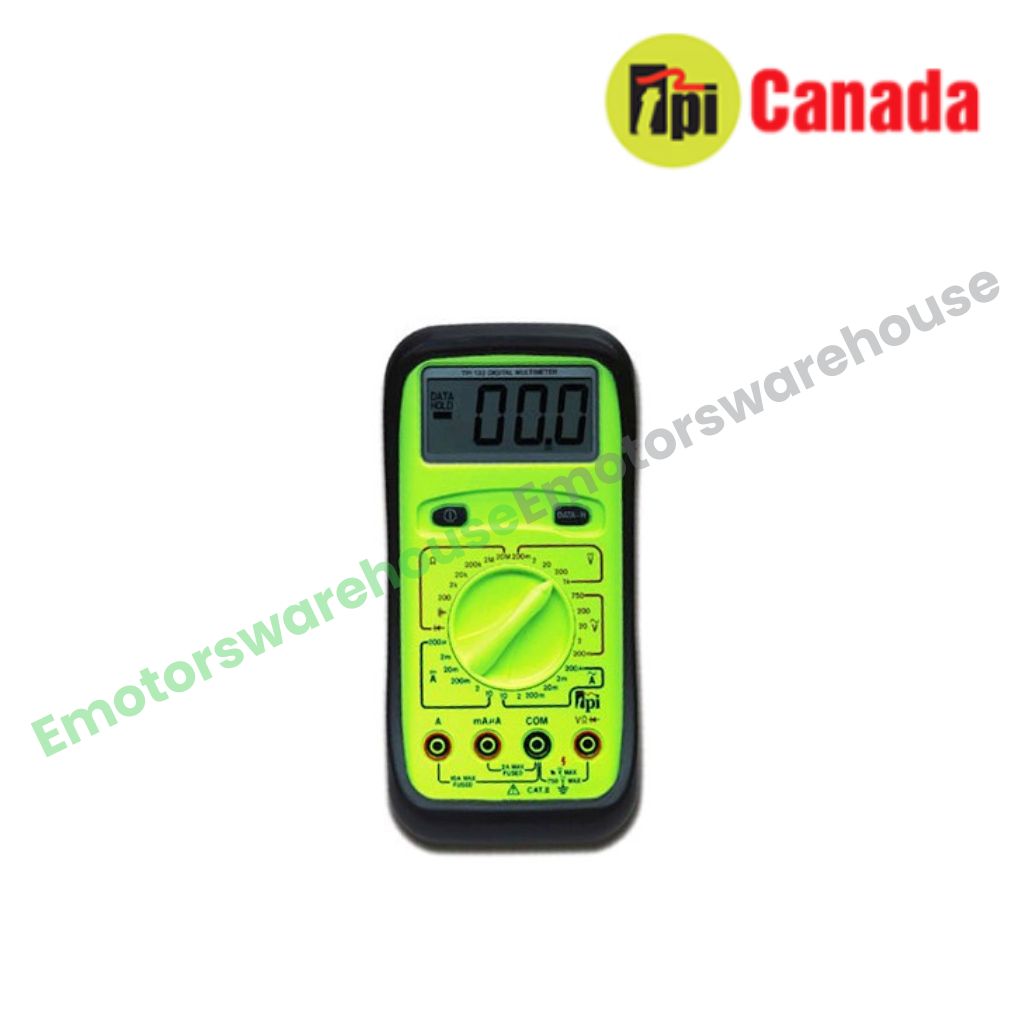

| Model TP-133 Specifications | ||
|---|---|---|
| DC Volts | Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: +/-0.5% |
|
| AC Volts | Maximum Input: 750V Maximum Resolution: 0.1mV Accuracy: +/-0.8% |
|
| DC Amps | Maximum Input: 10A Maximum Resolution: 0.1μA Accuracy: +/-0.5% |
|
| AC Amps | Maximum Input: 10A Maximum Resolution: 0.1μA Accuracy: +/-0.75% |
|
| Resistance (Ohms) | Maximum Input: 20MΩ Maximum Resolution: 0.1mΩ Accuracy: +/-0.75% |
|
| Frequency | N/A | |
| Capacitance | N/A | |
| Inductance | N/A | |
| Temperature
(K-Type Thermocouple) |
N/A | |
| Continuity | Audible at less than 100Ω | |
| Diode | 2.5V at 1mA maximum output | |
| Duty Cycle | N/A | |
| True RMS Responding | No | |
| Conductance | No | |
| Pulse Width | No | |
| Data Hold | Yes | |
| Min/Max Record | No | |
| Time Stamp Logging | No | |
| Relative Mode | No | |
| Compare Mode | No | |
| RS-232 Output | No | |
| Process Loop Output | No | |
| Sleep Mode / Auto Off | No | |
| Protective Boot | Yes (standard) | |
| Display Type | 4000 count LCD | |
| Range Selection | Auto / Manual | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) | |
| Humidity | 80% non-condensing | |
| Size | 7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot | |
| Weight | 12oz (340g) with boot | |
| Battery Type | 9V Alkaline (NEDA 1604) | |
| Battery Life | 500hrs Typical | |
| OverInput Category | CAT III 600V | |
| Agency Approval | cULus 61010-1, IEC 61010-1 | |
| Warranty | 3 Years | |
