Description

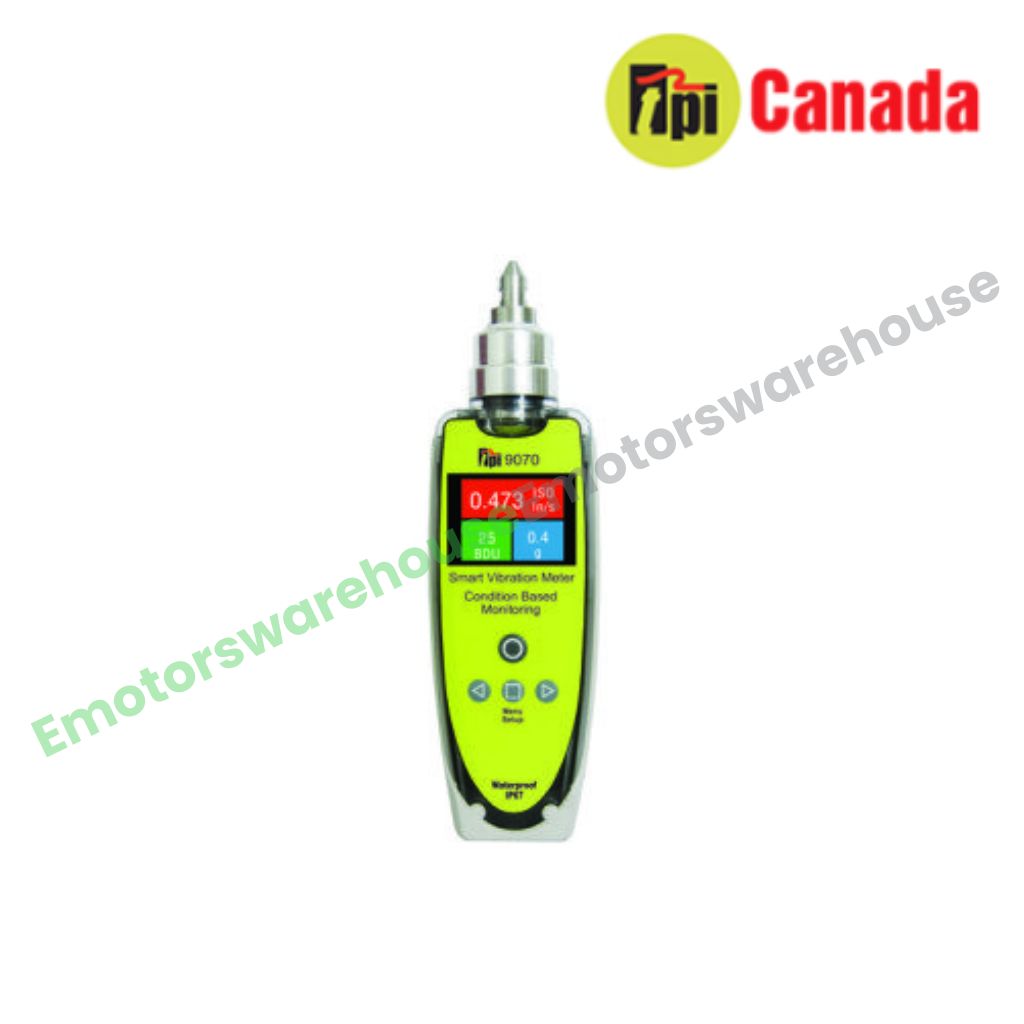

| Model TP-9070 Specifications | ||
|---|---|---|
| Size | H 7.95” W 2.36” | |
| Weight | 9.8oz (280g) | |
| Environmental | Water: IP67 Waterproof Operating: 32°F to 122°F (0C to 50C) Storage: -4°F to 158°F (-20C to 70C) |
|
| Power Supply | 2xAA batteries | |
| Battery life | Approximately 50 hours of normal use | |
| Frequency ranges: | 2/10Hz - 1kHz ISO 2Hz - 3kHz |
|
| Frequency resolution: | 100 / 200 / 400 / 800 lines | |
| Displayed amplitude units: | Acceleration in g / velocity in inches per second or mm per second / Bearing damage in BDU |
|
| Displayed frequency units: | Hz, CPM or RPM | |
| Input range: | +/- 50 g | |
| Dynamic range: | 72 dB | |
| Auto set up of VA bands | 2Yes | |
| Accelerometer connection: | Internal sensor | |
| Standard Accessories | Pouch with protective cap for pointed stinger | |
| Optional Accessories | Magnet | |
