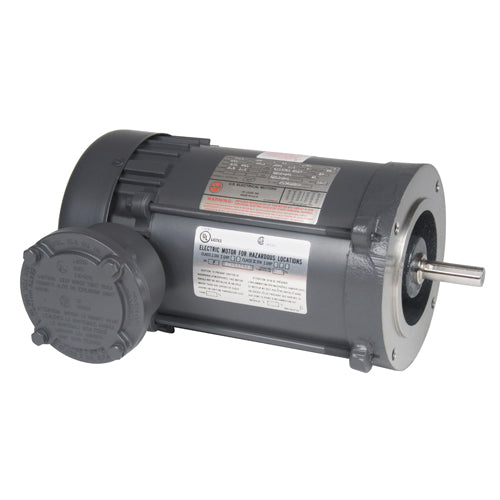

XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)
XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)
XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)
Roll over image to zoom in Click on image to zoom
XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)

XS12CA2J Explosion Proof Motor, Class I (Group C & D) Class II (Group E F & G)

Nidec U.S. MotorsSKU: XS12CA2J
Price:
$598.30 CAD

Shipping calculated at checkout

Stock:
In stock

Description

Model_Number
CH63ABN1034015B
PHASE TYPE
1_CAPACITOR START
MOTOR ENCLOSURE
TEFC
HORSEPOWER
.5
KILOWATTS
0.4
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115/208-230 V
VOLTS
115/208-230
FRAME
56
STATOR DIAMETER
6.3
STACK
1.625
MOUNTING
RIGID BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
REVERSIBLE
SERVICE FACTOR
1
STARTCAPMFD
473
SHIPPING WEIGHT
32 lbs
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
87.87
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
105.5
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
M
LOCKED ROTOR AMPS
41.39
FULL LOAD AMPS PRIMARY
9.8/4.9-4.9
