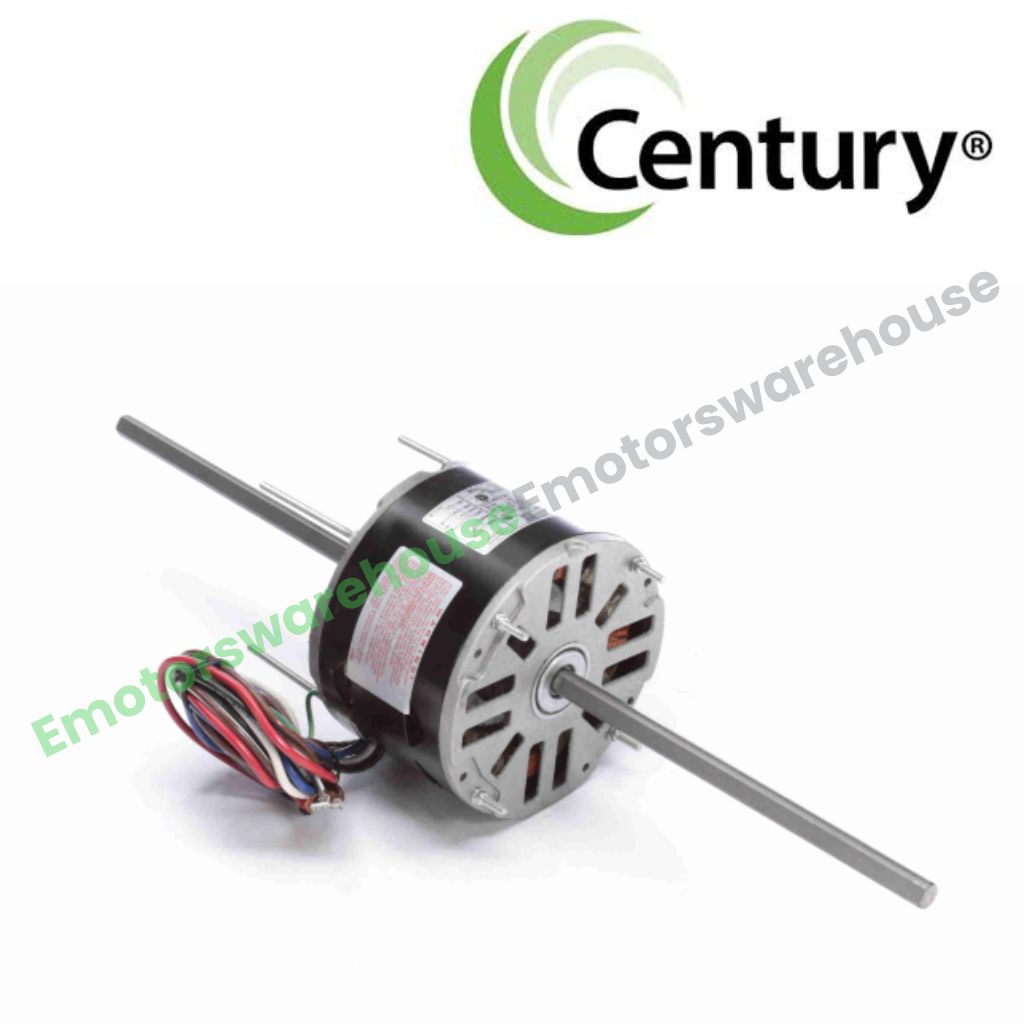

170B HVAC/R Motors, Fan Coil Motor

Connection Diagram                 Dimensional Diagram

• Type: Permanent Split Capacitor
• HP: 1/6
• Voltage: 208-230
• RPM: 1625
• AMPs: 1.1
• Phase: 1
• Rotation: CCWLE
• Frame: 48Y
• Enclosure: Semi Enclosed
• Speeds: 3
• Protector: Thermally Protected
• Ambient Temp: 60°C
• Service Factor: 1.00
• Shaft Dimensions: 8.5 in X 0.500 in X 8.5 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Length: 3.13 in
• Bearings: Sleeve
• Features: Class B Insulation, 37" Leads, Extended Studs Shaft End and Lead End
• Weight: 10
• References: Nidec U.S. Motors NA1024, A.O.Smith F48Z28A01, Dayton 4MA97, Emerson K55HXFJZ3419 K6656, Franklin Bluffton 8643860100 8643860110 8743660101, General Electric 5KCP39CG1029 5KCP39CG1542 5KCP39CG1658 5KCP39CG210 5KCP39CG270 5KCP39CG3038  GE 5KCP39KG4935T, Emerson RAK1885, Fasco D775, Carrier/BDP HC35LE115, A.O. Smith 170, A.O. Smith F48Z28A01, Carrier/BDP 40CJ680022, Carrier/BDP HC33MA230, Carrier/BDP HC33ME712, Carrier/BDP HC35KE231, Carrier/BDP HC35LE230, Carrier/BDP HC37680001, Carrier/BDP HC37ME242, Carrier/BDP HC37ME245, Emerson K55HXFJZ3419, Emerson K6656, Emerson RAK6656, Emerson RAK803, Fedders S19600101001, Franklin 80821, Franklin 8643860100, Franklin 8643860110, Franklin CW44020Z, Franklin CW4402OB, Franklin CY4214Z, Franklin CY4314E, Franklin CY4319E, Franklin CY4320Z, Franklin CY4324Z, Franklin CY4325B, Franklin CY4326E, Franklin CY44201Z, Franklin F-963, GE 3426, GE 3752, GE 3812, GE 3852, GE 3856, GE 3900, GE 5KCP29DK315, GE 5KCP39CB7447, GE 5KCP39CG1029, GE 5KCP39CG1164, GE 5KCP39CG1184, GE 5KCP39CG1283, GE 5KCP39CG1313, GE 5KCP39CG140, GE 5KCP39CG1430, GE 5KCP39CG1434, GE 5KCP39CG1542, GE 5KCP39CG1578, GE 5KCP39CG1596, GE 5KCP39CG1600, GE 5KCP39CG1658, GE 5KCP39CG1724, GE 5KCP39CG1725, GE 5KCP39CG1748, GE 5KCP39CG1781, GE 5KCP39CG1899, GE 5KCP39CG197, GE 5KCP39CG210, GE 5KCP39CG216, GE 5KCP39CG235, GE 5KCP39CG236, GE 5KCP39CG242, GE 5KCP39CG270, GE 5KCP39CG277, GE 5KCP39CG293, GE 5KCP39CG3037, GE 5KCP39CG3038, GE 5KCP39CG3039, GE 5KCP39CG3042, GE 5KCP39CG3123, GE 5KCP39CG313, GE 5KCP39CG3168, GE 5KCP39CG3169, GE 5KCP39CG3181, GE 5KCP39CG3290, GE 5KCP39CG3354, GE 5KCP39CG3366, GE 5KCP39CG3402, GE 5KCP39CG3465, GE 5KCP39CG3516, GE 5KCP39CG3517, GE 5KCP39CG3646, GE 5KCP39CG3708, GE 5KCP39CG373, GE 5KCP39CG3825, GE 5KCP39CG403, GE 5KCP39CG439, GE 5KCP39CG5108, GE 5KCP39CG5301, GE 5KCP39CG5303, GE 5KCP39CG5305, GE 5KCP39CG5315, GE 5KCP39CG5650, GE 5KCP39CG5833, GE 5KCP39CG5941, GE 5KCP39CG7415, GE 5KCP39CG7420, GE 5KCP39CG7430, GE 5KCP39CG7445, GE 5KCP39CG7447, GE 5KCP39CG7687, GE 5KCP39CG7782, GE 5KCP39CG7783, GE 5KCP39CG812, GE 5KCP39CG847, GE 5KCP39CG9043, GE 5KCP39CG9045, GE 5KCP39CG9286, GE 5KCP39CG9384, GE 5KCP39CG9828, GE 5KCP39CG9877, GE 5KCP39CG9912, GE 5KCP39CGA401, GE 5KCP39CGA401T, GE 5KCP39CGA491, GE 5KCP39CGA508, GE 5KCP39CGA735, GE 5KCP39CGA997, GE 5KCP39CGB448, GE 5KCP39CGB605, GE 5KCP39CGB749, GE 5KCP39CGB847, GE 5KCP39CGD151, GE 5KCP39CGD250, GE 5KCP39EG1731, GE 5KCP39EG250, GE 5KCP39EG294, GE 5KCP39EG3696, GE 5KCP39EG3988, GE 5KCP39EG441, GE 5KCP39EG536, GE 5KCP39EG5791, GE 5KCP39EG7343, GE 5KCP39EG7494, GE 5KCP39EG9501, GE 5KCP39EG9520, GE 5KCP39EGA933, GE 5KCP39EGB340, GE 5KCP39FG4933T, GE 5KCP39GG224, GE 5KCP39GG3712, GE 5KCP39GG440, GE 5KCP39GG545, GE 5KCP39GGD250, GE 5KCP39MG3465, GE 5KP39DG338, GE 5KSP39DG123, GE 5KSP39DG124, GE 5KSP39DG168, GE 5KSP39DG215, GE 5KSP39DG338, GE 5KSP39DG345, GE 5KSP39DG418, GE 5KSP39DG4782, GE 5KSP39DG937, GE 5KSP39DG938, GE 5KSP39FG125, GE 5KSP39FG126, GE 5KSP39FG173, GE 5KSP39FG2023, GE 5KSP39FG203, GE 5KSP39FG209, GE 5KSP39FG216, GE 5KSP39FG2224, GE 5KSP39FG2244, GE 5KSP39FG2252, GE 5KSP39FG229, GE 5KSP39FG2358, GE 5KSP39FG242, GE 5KSP39FG2500, GE 5KSP39FG2502, GE 5KSP39FG2539, GE 5KSP39FG2587, GE 5KSP39FG2591, GE 5KSP39FG2603, GE 5KSP39FG2657, GE 5KSP39FG2673, GE 5KSP39FG2692, GE 5KSP39FG272, GE 5KSP39FG275, GE 5KSP39FG2812, GE 5KSP39FG2829, GE 5KSP39FG2837, GE 5KSP39FG2848, GE 5KSP39FG300, GE 5KSP39FG302, GE 5KSP39FG303, GE 5KSP39FG351, GE 5KSP39FG404, GE 5KSP39FG4128, GE 5KSP39FG4208, GE 5KSP39FG432, GE 5KSP39FG4933, GE 5KSP39FG590, GE 5KSP39FG642, GE 5KSP39FG643, GE 5KSP39FG647, GE 5KSP39FG664, GE 5KSP39FG675, GE 5KSP39FG6811, GE 5KSP39FG811, GE 5KSP39FG812, GE 5KSP39FG939, GE 5KSP39FG940, GE 5KSP39FG957, GE 5KSP39FG987, GE 5KSP39FG998, GE 5KSP39HG2344, GE 5KSP39KG4933, GE G457, GE G471, GE G473, GE G521, GE G529, GE G541, Dayton 3M229, Dayton 3M509, Dayton 4M336, Dayton 4MA97, RMR S416CW53, Trane MOT 6079, Universal Electric HE2E011, Universal Electric HE2E020, Universal Electric HE2E021, Universal Electric HE2E025, Universal Electric HE2E7011, Universal Electric HE2F017, Universal Electric HE3F076, Universal Electric HF2F035
