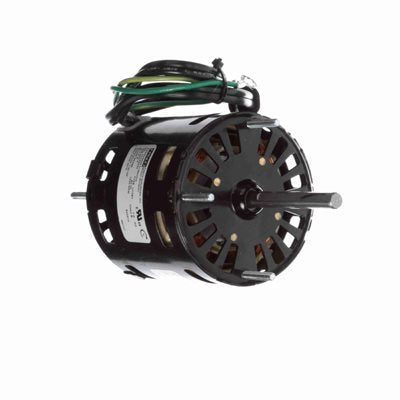

Description
- Type : Shaded Pole
- HP : 1/20
- Voltage : 208-230
- RPM : 1450
- Current (Amp) : 0.90/1.0
- Phase : 1
- Rotation : Clockwise Shaft End
- Frame : 3.3
- Enclosure : Open Air Over
- Speeds : 1
- Protector : Thermally Protected
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.313 in X 2.66 in
- Frequency : 60Hz
- Diameter : 3.3 in
- Frame Length : 3.24 in
- Bearings : Sleeve
- Features: Class B Insulation, 12.25" Leads with Molded Plug, Extended Studs Shaft End and Lead End, Belly Band, Shaft with Flat
- Weight: 4 lbs
- Cross References: A.O. Smith AO1154, Century 396, Fasco D188, Universal Electric JA2R140N, SS396
