Description

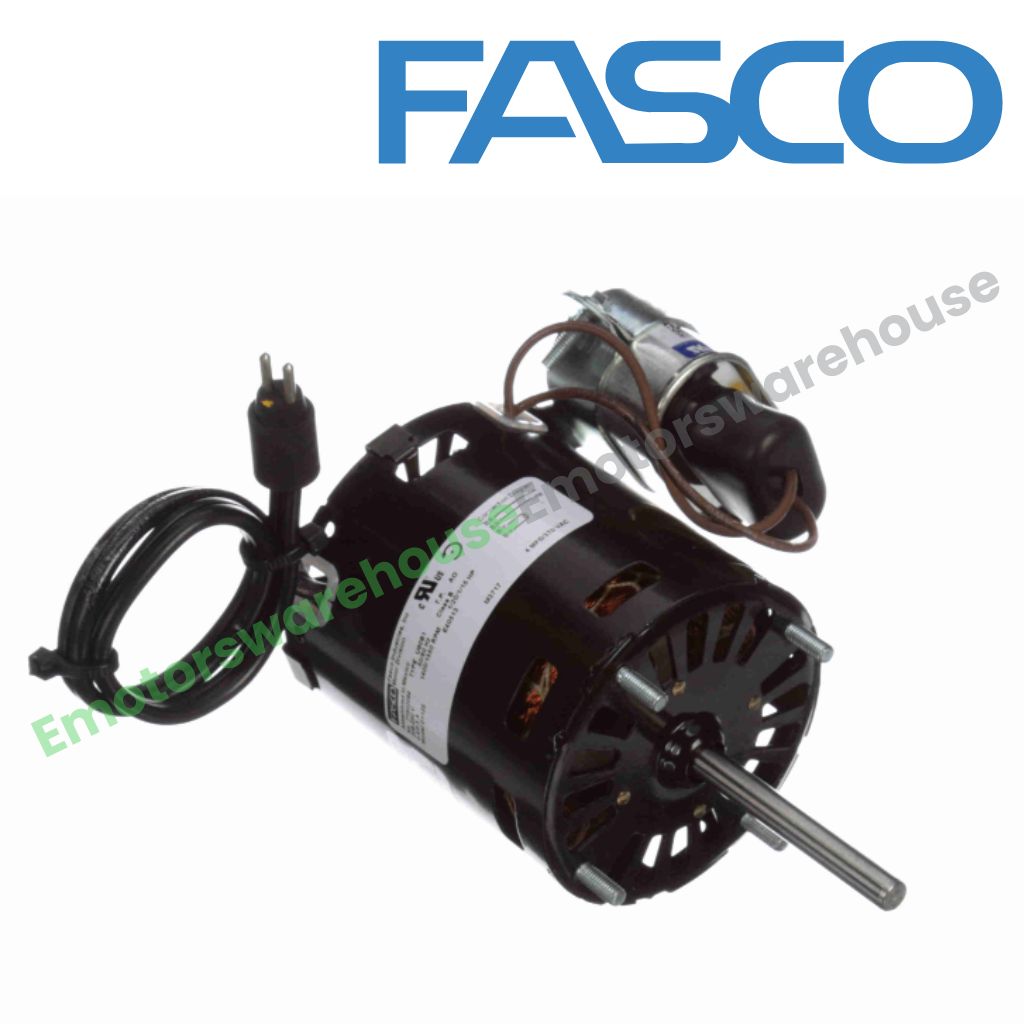

- Type : Permanent Split Capacitor
- HP : 1/20-1/15
- Voltage : 208-230
- RPM : 1400/1500
- Current (Amp) : 0.4/0.5
- Phase : 1
- Rotation : Counterclockwise Shaft End
- Frame : 3.3
- Enclosure : Open Air Over
- Speeds : 1
- Protector : Thermally Protected
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.313 in X 2.64 in
- Frequency : 60Hz
- Diameter : 3.3 in
- Frame Length : 3.62 in
- Bearings : Sleeve
- Capacitor Rating : 4-44
- Features : Class B Insulation, 13" Leads with Molded Plug, Extended Studs Shaft End, Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- A.O.Smith 9720A
- Cross Reference: 7190-0442
