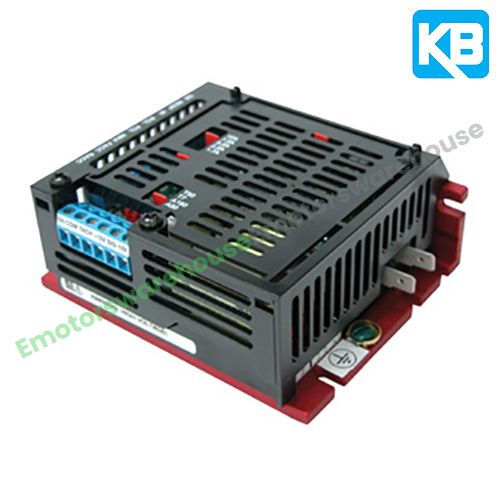

Model : KBMG-212D 8831K
-
Type : SCR Regen Reversing Drive
-
HP : 1-1/2
-
Input Phase : 115/230 VAC
-
Input Voltage : 1
-
Output Phase : 0-130 VAC
-
Output Voltage : N/A
-
Input Amps AC : 12.0A
-
Output Armature VDC : 90 VDC / 180 VDC
-
Output Field Volt/Amps DC : 100 VDC, 200 VDC, 50 VDC
-
Enclosure : Open Chassis
-
Braking Type : N/A
-
Temperature Range : 32-113°F
-
Frequency : N/A
-
Optional Accessories : 8832 SIMG Signal Isolator Board, 8833 KBMG Multi-Speed Board Plugs on top, 9861 Heatsink 7'', 9995 Din Rail Mounting for L Bracket Controls.
-
Dimensions Inches : 4.50 X 3.70 X 1.90
-
Product Summary : Operates off 115/230 Volt AC line, 50/60 Hz. Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
- *Plug-In Horsepower Resistor® and Armature fuse supplied separately. Options include Auxiliary heat sink, Barrier Terminal Board, RFI/EMI filters and Signal Isolation.
- Remplace: KB8900 , KB8901 , KB8819
Note: See more information about this product
