Description

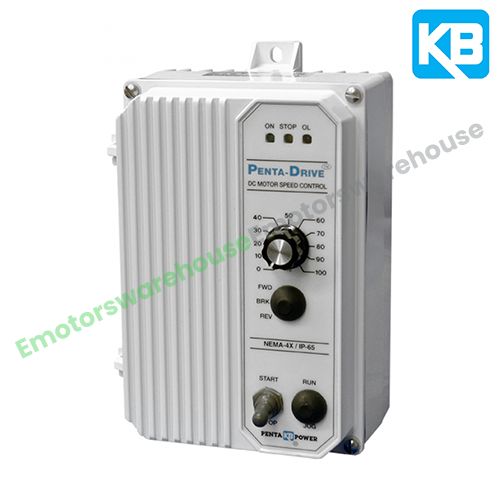

(KBPC-225D) SCR DC Drive 1.5HP-3HP 15A 115/230VAC Input 90/180VDC NEMA 4X Enclosure - White 9392
• The KBPC-225D is a 230 Vac, enclosed NEMA-4X (IP-65), adjustable speed DC Motor Speed and variable Torque control
• Designed for environments where high humidity or watertight integrity is required
• Short Circuit and Timed Current Limit (TCL) circuitry prevents motor burnout and demagnetization of PM motors
• FDA approved white case. Approvals: UL, CSA, CE, C-tick
• Selectable features are:
- Motor voltage 90/180VDC
- Motor current range .25 to 10 amps
- Input signal 0-5/0-20VDC
- Armature/tachometer feedback
- Tachometer voltages 7,25,50 V/1000 rpm
- Analog adjustments include: Min, Max, Accel, Decel, IR, CL, TCL and Jog
• Standard features are:
- Armature fusing
- Electronic start-stop and LED indicators for "Power On," "Stop" and "Overload"
• Dimensions: 5.90" x 9.50" x 5.00"
• Resistor and armature fuse: Supplied
