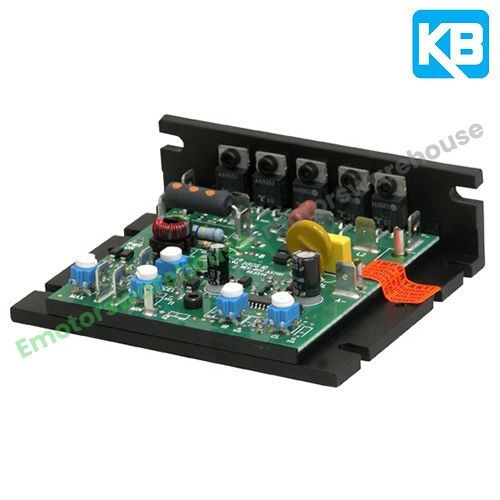

Model : KBIC-240DS
-
Type : SRC DC Drives
-
HP : 1HP
-
Input Phase : 115/230 VAC
-
Input Voltage : 1
-
Output Phase : 90/180 VDC
-
Output Voltage : N/A
-
Input Amps AC : 9A
-
Output Armature VDC : 90 VDC
-
Output Field Volt/Amps DC : 100 VDC, 50 VDC
-
Enclosure : Open, Chassis
-
Braking Type : N/A
-
Temperature Range : 32-113°F
-
Frequency : N/A
-
Optional Accessories : 9863, KBIC Barrier Terminal Kit, 9884, KBIC Barrier Terminal Board, 9443, SI-5 , KBIC Signal Isolator Board (SI-5), 9849, Combo Fuse Kit for Motor Armature & AC Line (Fuses not included), 9861, Auxiliary Heatsink 7", 9832, Knob and Dial Kit - Large Dial P
-
Dimensions Inches : 4.30" x 3.60" x 1.30"
-
Product Summary : The KBIC-240DS is an adjustable speed DC Drive. It will control motors between 1/50-1.0 HP (2.0 HP w/aux. Heat-sink) by inserting the proper Plug-in Horsepower Resistor. The KBIC-240D motor speed control operates from either 115vac or 230 vac and is designed for 90vdc PM and Shunt* motors. Speed range is 50:1 with load regulation of 1%. Features include Auto Inhibit, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL. Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-5). UL, CSA, CE, C-tick. (CCC pending). See instruction manual for wiring 90vdc Shunt motors on 230vac input.
