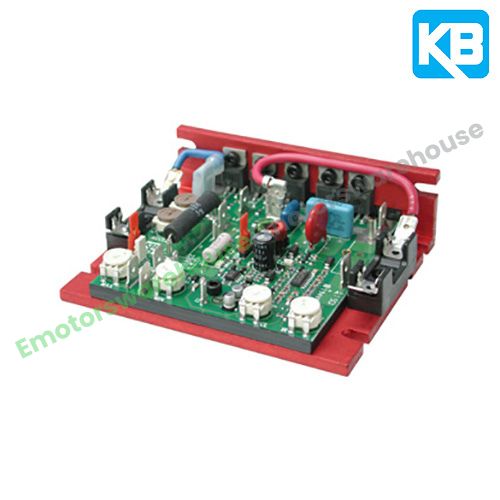

Model : KBMM-125
-
Type : SRC DC Drives
-
HP : 1-1/2 HP
-
Input Phase : 115 VAC
-
Input Voltage : 1
-
Output Phase : 1-130 VDC
-
Output Voltage : N/A
-
Input Amps AC : 12A
-
Output Armature VDC : 90 VDC
-
Output Field Volt/Amps DC : 100 VDC, 50 VDC
-
Enclosure : Open, Chassis
-
Braking Type : N/A
-
Temperature Range : 32-113°F
-
Frequency : N/A
-
Optional Accessories : KBIC-125 (9433), SCR DC Drives, 115 Vac Input, 0-130 Vdc Output, thru 0.75(3/4) HP, Open, KBPB-125 (8900), SCR Relay Reversing DC Drives, 115 Vac Input, 0-130 Vac Output, thru 1, KBCC-125 (9936), SCR DC Drive, 115 Vac Input, 0-90 Vdc Output, thru 1 1/2 HP, Open Chassis,
-
Dimensions Inches : 4.30” x 3.60” x 1.30”.
-
Product Summary : Operates off 115 Volt AC line, 50/60 Hz. Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
- This drive features an analog control panel.
- Remplace: 8609 , 8607 & 8614
Note: See more information about this product
