Description
(KBCC-125R) SCR DC Drive 1.5HP 16A 115VAC 1PH Input 90VDC Output Relay Reversing Chassis 9937
• The KBCC-125R is 115 VAC
• Designed for 90 VDC PM motors.
• Control motors between 1/100-1.5 HP
• Designed to provide anti-plug ''instant'' reverse, solid state dynamic braking and rapid cycling.
• They include all the features of the KBCC with features of the KB APRM.
• KB APRM eliminates contact arcing by allowing armature switching to take place only when voltage levels are near zero.
• The controls are ruggedly constructed and contain a remote 5K speed pot.
• Features include:
- AC Line fuse and Armature Fuse holder
- Auxiliary heat sink
- Barrier terminal block
• Specific functions that can be performed by the KBCC-R are Run-Brake, Forward-Brake-Reverse, Run-Stop and Forward-Reverse (instant reverse).
• Also contains auto inhibit which provides a smooth, safe start during rapid switching of the AC line
• Requires a plug-in horsepower to operate and includes and AC Line fuse and an armature holder
• Dimensions: 9.00" x 6.25" x 4.50

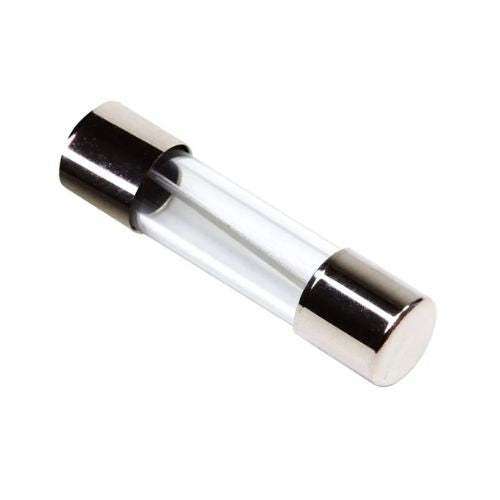

• Line fuse: Required

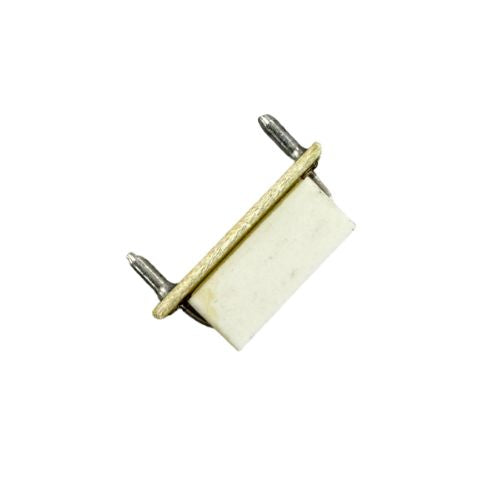

• Resistor and armature fuse: Required
