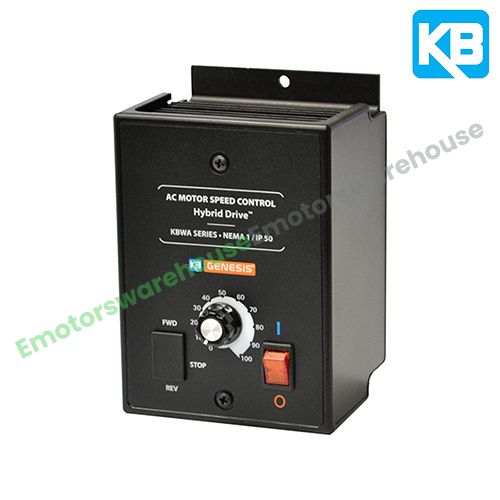

Model : KBWA-23D Black
-
Type : AC Drives
-
HP : 1/2HP
-
Input Phase : 115/230 VAC
-
Input Voltage : 1
-
Output Phase : 230 VAC
-
Output Voltage : 3
-
Input Amps AC : 2.4A
-
Output Armature VDC : N/A
-
Output Field Volt/Amps DC : N/A
-
Enclosure : IP20
-
Braking Type : AC Line Regenerative, DC Injection
-
Temperature Range : N/A
-
Frequency : N/A
-
Dimensions Inches : 3.92" x 6.06" x 3.65"
-
Product Summary : The KB Electronics KBWA Hybrid Drive Series consist of an AC digital drive with a analog interface that operate on either 115 or 230 VAC. The KBWA-23D is housed in a vented NEMA 1 / IP 20 enclosure and is rated through ½ HP. Model KBWA-22D is housed in a non-vented NEMA 1 / IP 50 enclosure and is rated through ¼ HP. These drives combine the digital technology of the microprocessor with an easy to use analog interface. Simple trimpot adjustments and selectable jumpers are used in lieu of complicated programming.
- Operates off 115/230 Volt AC line, 50/60 Hz. Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
Note: See more information about this product
