Description
FEATURES:
• Fully Integrated Variable Speed Motor & Control
• Brushless Permanent Magnet (BPM) Motor
• Proposed DOE Regulation & CEC Title 20 Compliant
• Dual Voltage 1.25THP & 1.65THP Models
• TEFC -- IPX5 Enclosure • Shaft Threads -- (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
• 50°C Ambient • Triple Bearing Protection
• 1081 Design
• Continuous Duty
• Class F Insulated
• Sealed Ball Bearings
• 80%+ Motor & Control Efficiency @ Full Speed
• 300 Series Stainless Steel Shaft
• Speed Range:600-3450 RPM
• Low Temperature Monitor
• Finned Aluminum Enclosure

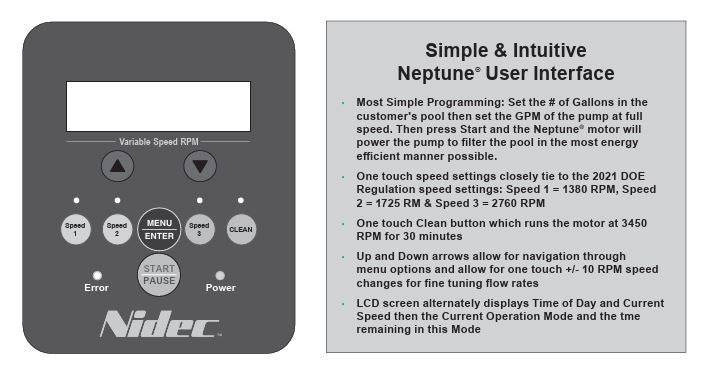

• Fully Functional User Interface (Back Lit)
• Modbus & Low Voltage Connection to Pool Control Systems
• Up to Seven Daily Schedules Can Be Programmed
• Adjustable Priming Time & Speed
• Menu Keypad Lockout
• Designed For Quiet Operation
• Simple "Drop In" installation with No Complex Wiring
• Factory Programmed Schedule Settings to Meet the Proposed DOE & the CEC Title 20 Regulation
• Ability to communicate with pool control systems
• Fully Integrated Variable Speed Motor & Control
• Brushless Permanent Magnet (BPM) Motor
• Proposed DOE Regulation & CEC Title 20 Compliant
• Dual Voltage 1.25THP & 1.65THP Models
• TEFC -- IPX5 Enclosure • Shaft Threads -- (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
• 50°C Ambient • Triple Bearing Protection
• 1081 Design
• Continuous Duty
• Class F Insulated
• Sealed Ball Bearings
• 80%+ Motor & Control Efficiency @ Full Speed
• 300 Series Stainless Steel Shaft
• Speed Range:600-3450 RPM
• Low Temperature Monitor
• Finned Aluminum Enclosure
• Fully Functional User Interface (Back Lit)
• Modbus & Low Voltage Connection to Pool Control Systems
• Up to Seven Daily Schedules Can Be Programmed
• Adjustable Priming Time & Speed
• Menu Keypad Lockout
• Designed For Quiet Operation
• Simple "Drop In" installation with No Complex Wiring
• Factory Programmed Schedule Settings to Meet the Proposed DOE & the CEC Title 20 Regulation
• Ability to communicate with pool control systems
Total Horse Power: 1.65
RPM: 600-3450
Voltage: 115/230
Hertz: 50/60
Amps: 13.6/6.8
System Efficiency: 81%
Power Factor Corrected: Yes
Frame: 48Y
Motor Length (Less Shaft): 10.66 in.
Weight: 30 lbs
Cross References: Century USQ1152 ESQ1102 EUSQ1152, U.S. Motors ASQ165
