Description
- Type : Permanent Split Capacitor
- HP : 1/6
- Voltage : 115 / 230
- RPM : 1625
- Current (Amp) : 1.90 / 0.96
- Phase : 1
- Rotation : Clockwise Shaft End
- Frame : 42Y
- Enclosure : Nema 1
- Speeds : 1
- Protector : Thermally Protected
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 3.00 in
- Frequency : 60/50Hz
- Diameter : 5.0 in
- Frame Length : 3.80 in
- Bearings : Ball

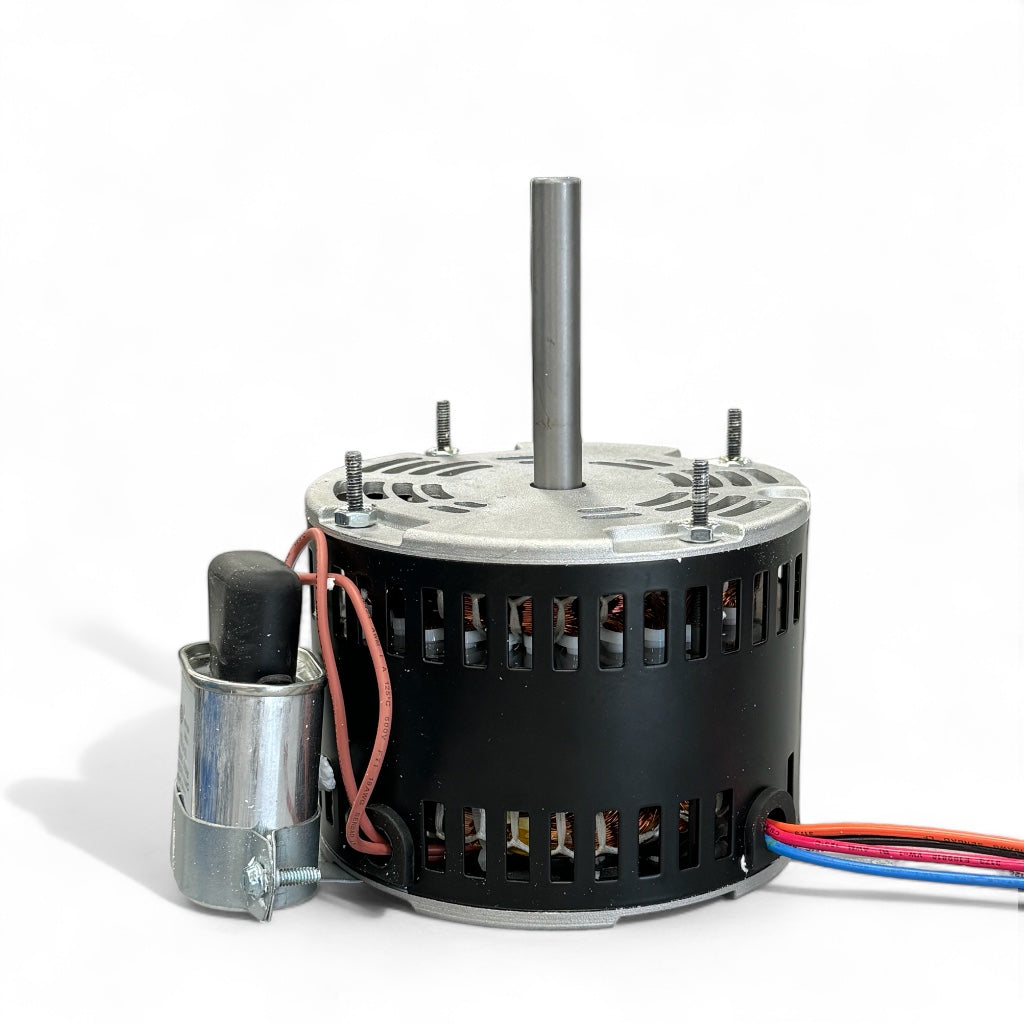

- Features: Class B Insulation, 5-Pin Molded Plug, Extended Thru-Bolts Shaft End, Capacitor Supplied with Motor

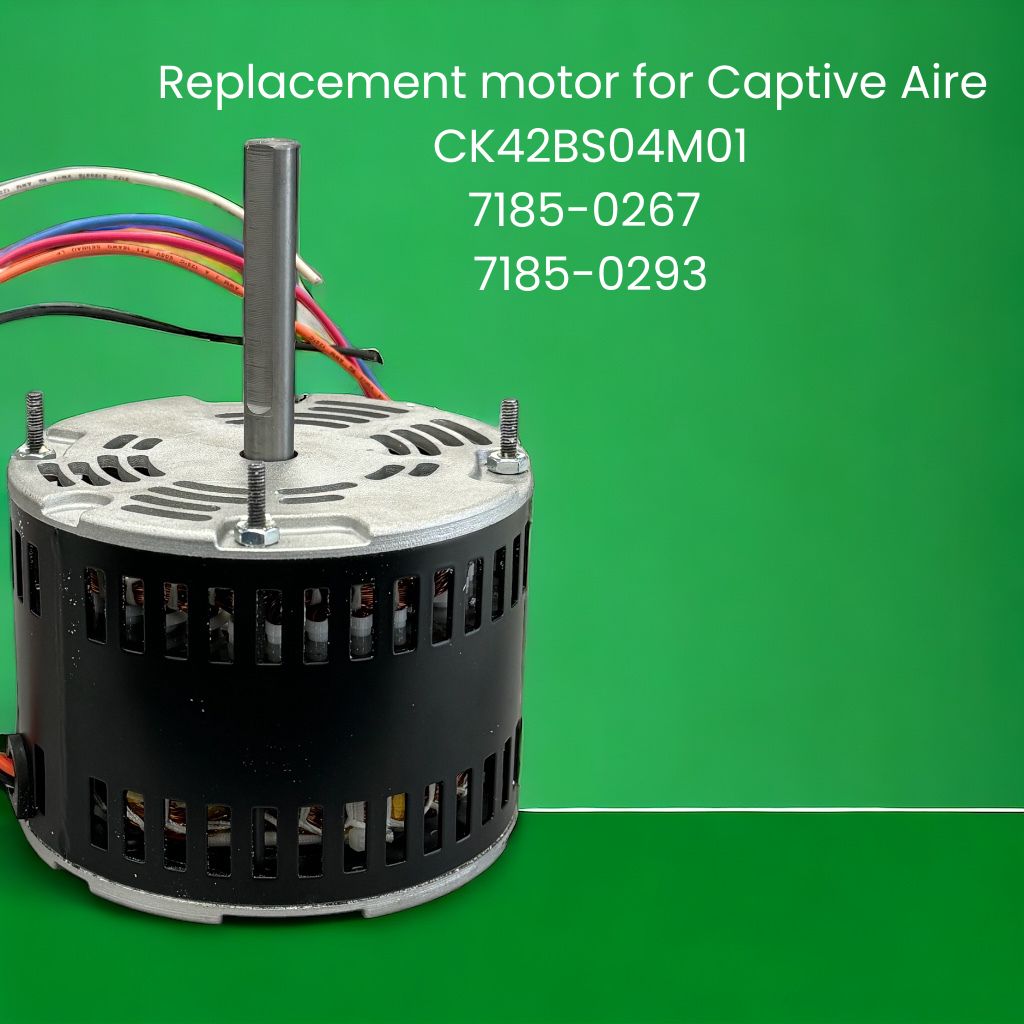

- References: CK42BS04M01 Fasco 7185-0267 7185-0293 Used on DU12, DR12. 8550 8550A
