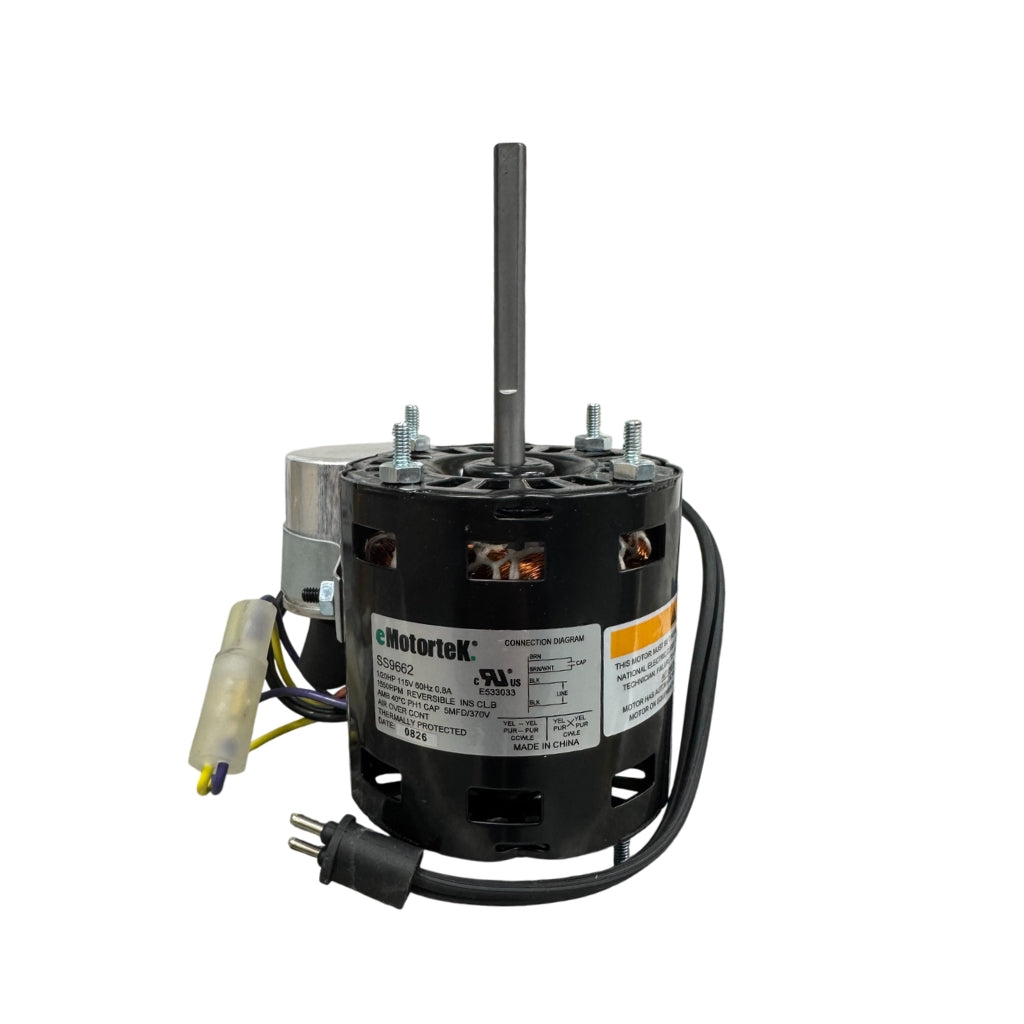

Description
- Type : Permanent Split Capacitor
- HP : 1/20
- Voltage : 115
- RPM : 1550
- Current (Amp) : 0.8
- Phase : 1
- Rotation : Reversible
- Frame : 3.3
- Enclosure : Open
- Speeds : 1
- Protector : Thermally Protected
- Ambient Temp : 40°C
- CFM : N/A
- Service Factor : 1.00
- Shaft Dimensions : 0.312 in X 3.00 in
- Frequency : 60Hz
- Diameter : 3.3in
- Frame Length : 4.25 in
- Bearings : Ball
- Capacitor Rating : Supplied With Motor
- Features: Class B Insulation, 4 Extended Bolts Shaft and Opposite Shaft End, 16" Leads, 5/16" Diameter Shaft with Flat, Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Weight: 5 lbs
- Cross References:
- AMEC YDK83-60-4A
BAKER 177036
EMERSON M1873155400000B, M1875782000000B, K9662, F33BFD-2225, K33WLB-1409, 9653, F33BFF-784, TEST001, M1873155600000B
FASCO 7163-5754, 7163-9384, D-1120
GENERAL ELECTRIC 5KSM59ES3443, 5KSP39MG6092, 5KSP39MG6737, 5KSP39MG6294, 5KSP39MG4645, 5KSP39MG4148, 5KSP39MG4054, 5KSP39HG4352, 5KSP39FG2708, 5KSP39MG2299, 5KSP39MG6982, 5KSP39MG6368, 5KSP39MG6059, 5KSP39MG4331, 5KSP39MG4145, 5KSP39MG4053, 5KSP39FG4622, 5KSP39MG2706
GRAINGER/DAYTON 32NA59, 32NA60, 32NA49, 32NA51
HEATCRAFT E206444, 2530001
JS S59-317
KRACK E206447
LARKIN 7163-2113
MARS 9932, 1127, 9930
ROTOM R3-R358
TRANE M0T-12371, M0T-13971
UNIVERSAL JA2R108, 9488, JA2N184, JA2N015
