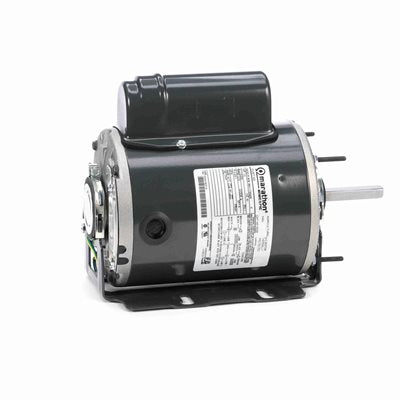

Description
- Type : Permanent Split Capacitor
- HP : 1/3
- Voltage : 115 / 230
- RPM : 1075
- Current (Amp) : 4.20 / 2.10
- Phase : 1
- Rotation : Reversible
- Frame : 48Y
- Enclosure : Totally Enclosed Air Over
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 2.56 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 10.84 in
- Bearings : Ball
- Features: Class B Insulation, Extended Bolts Shaft End, Resilient Base Mount, 1/2" Diameter Shaft With Flat, Capacitor Supplied With Motor, Variable Speed.
- Cross References: Century C046A C046, Marathon 48A11T2022
