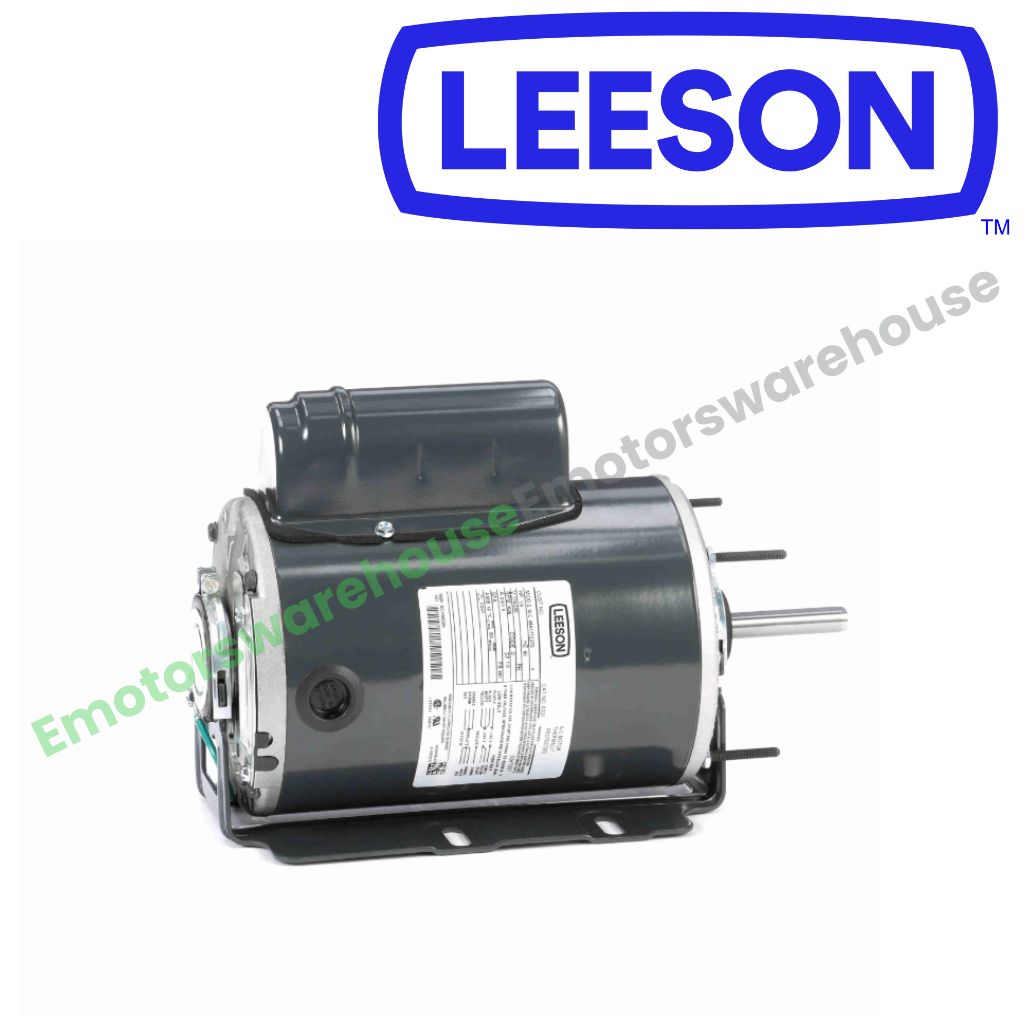

Nameplate Specifications
| Phase: |
1 |
Output HP: |
0.33 Hp |
| Output KW: |
0.25 kW |
Voltage: |
115/230 V |
| Speed: |
1625 rpm |
Service Factor: |
1.0 |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Efficiency: |
66 % |
| Ambient Temperature: |
40 °C |
Frequency: |
60 Hz |
| Current: |
3.8/1.9 A |
Power Factor: |
96 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
D |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
| Number of Speeds: |
1 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base - Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
11.81 in |
| Frame Length: |
7.25 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.56 in |
Assembly/Box Mounting: |
F1 ONLY |
General Specifications
| UPC: |
722856028068 |
Weight: |
23.00 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
HTC: |
8501.40.4040 |
| Country of Origin: |
Mexico |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
5.71 |
0.0 |
11.40 |
0.0 |
0 |
1.08 |
80.0 |
0.33 |
| Pull-Up |
5.77 |
|
9.75 |
|
33 |
1.09 |
|
0.33 |
| Break-Down |
3.71 |
|
30.20 |
|
1,357 |
0.79 |
|
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
| Current (Amps) |
0.67 |
0.91 |
1.17 |
1.44 |
1.75 |
2.17 |
| Rated Output (KW) |
0.15 |
0.21 |
0.27 |
0.33 |
0.40 |
0.49 |
| Efficiency (%) |
0.0 |
33.0 |
50.0 |
57.0 |
66.0 |
0.0 |
| Power Factor (%) |
99.0 |
99.0 |
100.0 |
100.0 |
96.0 |
0.0 |
| Speed (RPM) |
1,800 |
1,763 |
1,739 |
1,710 |
1,672 |
1,610 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
4.01 |
8.10 |
12.30 |
16.80 |
21.80 |
Cross References: Century C043A C043, Marathon 48A17T237
