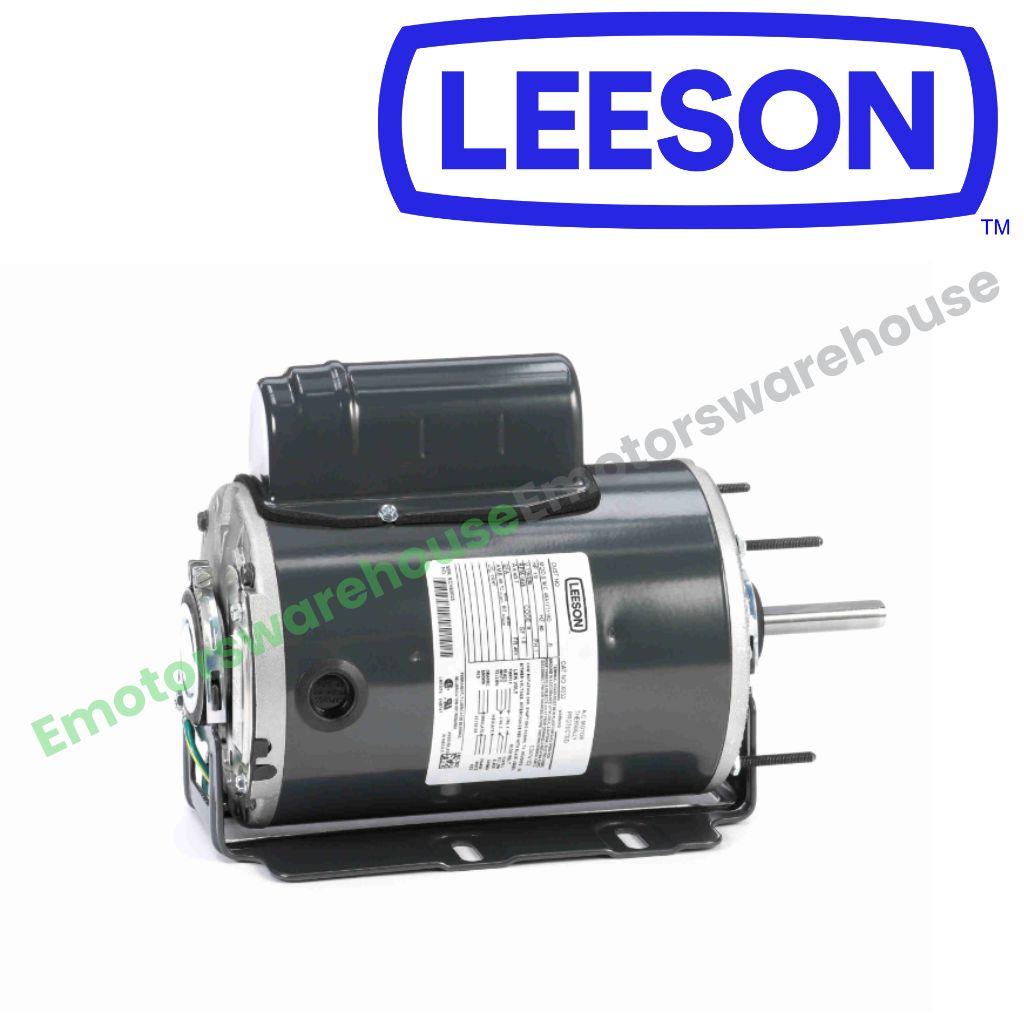

Nameplate Specifications
| Phase: |
1 |
Output HP: |
0.50 Hp |
| Output KW: |
0.37 kW |
Voltage: |
115/230 V |
| Speed: |
1625 rpm |
Service Factor: |
1.0 |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Efficiency: |
72 % |
| Ambient Temperature: |
40 °C |
Frequency: |
60 Hz |
| Current: |
5.4/2.7 A |
Power Factor: |
93.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
B |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
| Number of Speeds: |
1 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base - Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
11.81 in |
| Frame Length: |
7.25 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.56 in |
Assembly/Box Mounting: |
F1 ONLY |
General Specifications
| UPC: |
722856028075 |
Weight: |
24.00 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
HTC: |
8501.40.4040 |
| Country of Origin: |
Mexico |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
7.74 |
322.0 |
17.80 |
69.0 |
0 |
1.53 |
0.0 |
0.50 |
| Break-Down |
5.31 |
221.0 |
46.10 |
179.0 |
1,264 |
1.12 |
0.0 |
0.50 |
| Pull-Up |
7.80 |
325.0 |
16.40 |
64.0 |
34 |
1.54 |
0.0 |
0.50 |
| Full Load |
2.40 |
100.0 |
25.70 |
100.0 |
1,630 |
0.52 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
0.75 |
1.05 |
1.40 |
1.80 |
2.40 |
2.70 |
3.04 |
| Rated Output (KW) |
0.13 |
0.21 |
0.30 |
0.40 |
0.52 |
0.60 |
0.67 |
| Efficiency (%) |
0.0 |
44.7 |
62.0 |
70.0 |
72.0 |
70.0 |
70.3 |
| Power Factor (%) |
74.2 |
86.5 |
93.2 |
96.1 |
93.5 |
95.0 |
95.1 |
| Speed (RPM) |
1,800 |
1,755 |
1,718 |
1,678 |
1,630 |
1,600 |
1,559 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
5.99 |
12.20 |
18.70 |
25.70 |
30.00 |
33.80 |
KEY FEATURES
- Double-shielded bearings extend the service life of the motor.
- EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
- Shaft flingers protect bearings from damage caused by dirt and rain.
- Condensation drains allow the motor to expel and drain built-up moisture.
- LEESON® motors. Motors and solutions at our core™
Cross References: Century C044A C044, Marathon 48A17T119, Canarm P1162-G3
