Description

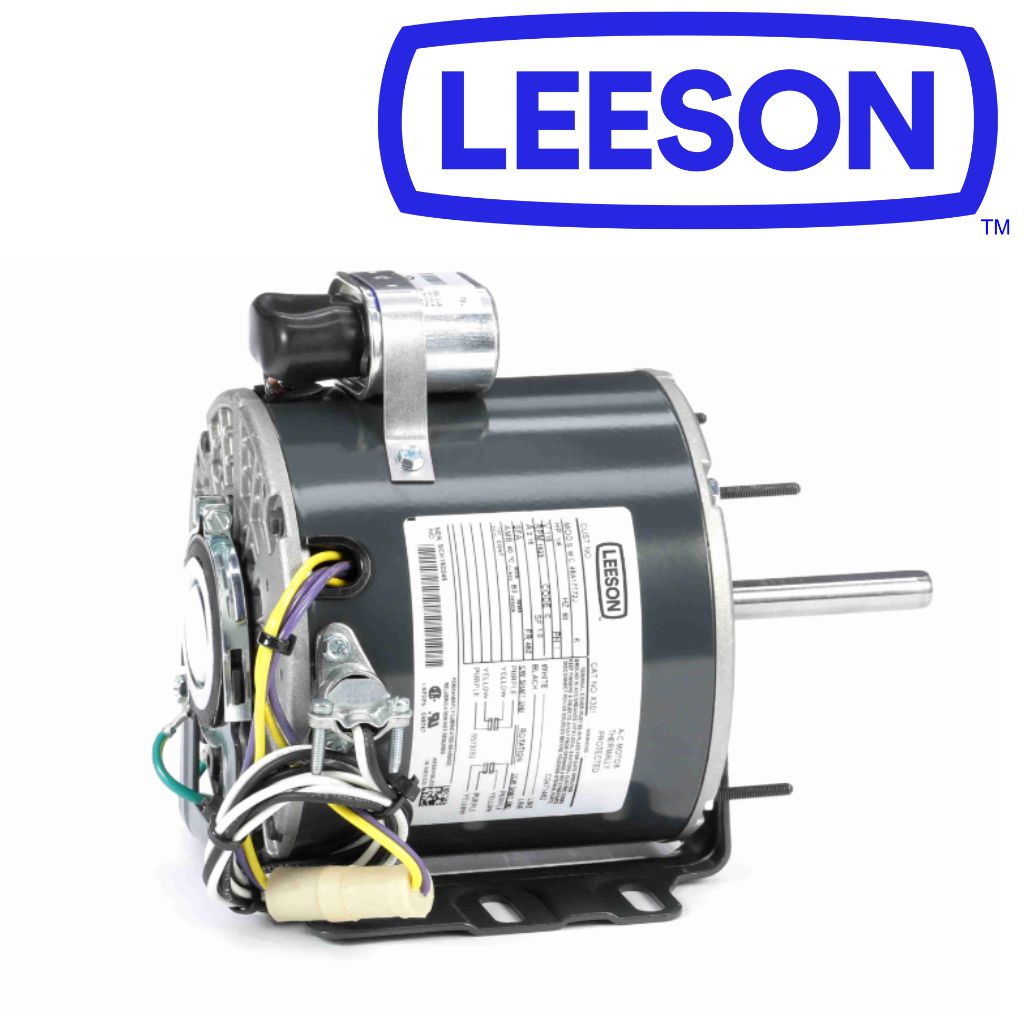

- Type : Permanent Split Capacitor
- HP : 1/6
- Voltage : 115
- RPM : 1625
- Current (Amp) : 2.20
- Phase : 1
- Rotation : Reversible
- Frame : 48Z
- Enclosure : Totally Enclosed Air Over
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 40°C
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 2.81 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 9.00 in
- Bearings : Ball
- Features: Class B Insulation, Extended Bolts Shaft End, Resilient Ring Mount, 1/2" Diameter Shaft With Flat, Capacitor Supplied With Motor.
- References: 48A17T72, U.S. Motors K055RGE1941015B 1385 K55MDB2823 K55JHY9347, Dayton 22YH31JSS88-066, X305, Copeland 050-0265-06 48A17T72J
