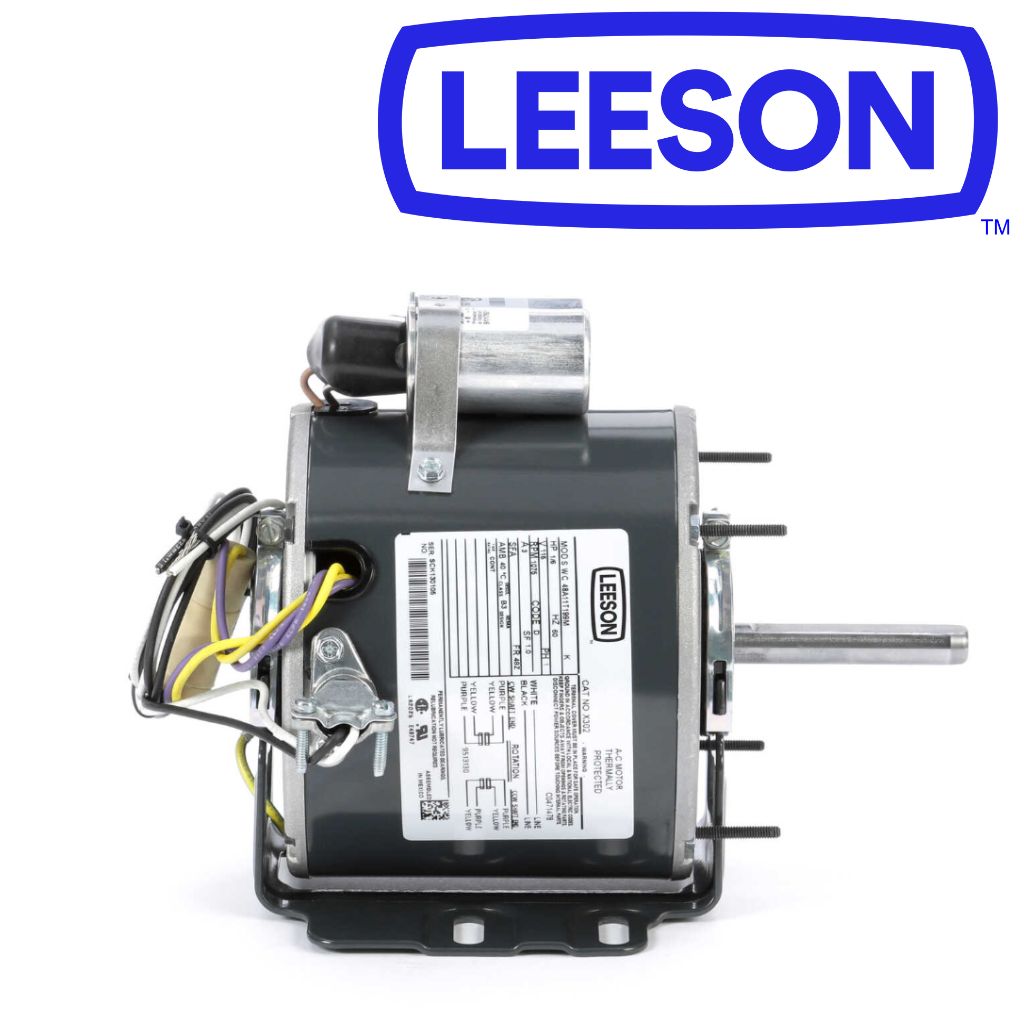

Nameplate Specifications
| Phase: |
1 |
Output HP: |
0.17 Hp |
| Output KW: |
0.13 kW |
Voltage: |
115 V |
| Speed: |
1075 rpm |
Service Factor: |
1.0 |
| Frame: |
48Z |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Efficiency: |
55 % |
| Ambient Temperature: |
40 °C |
Frequency: |
60 Hz |
| Current: |
3.0 A |
Power Factor: |
79 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
D |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
| Number of Speeds: |
1 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base - Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
8.50 in |
| Frame Length: |
4.25 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.81 in |
Assembly/Box Mounting: |
F1 ONLY |
General Specifications
| UPC: |
722856041814 |
Weight: |
13.00 LB |
| Packaged Length: |
12.44 IN |
Packaged Width: |
9.13 IN |
| Packaged Height: |
8.06 IN |
HTC: |
8501.40.4040 |
| Country of Origin: |
Mexico |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
6.39 |
|
3.10 |
|
0 |
0.57 |
|
0.17 |
| Break-Down |
4.25 |
|
19.70 |
|
957 |
0.41 |
|
0.17 |
| Pull-Up |
6.40 |
|
2.90 |
|
7 |
0.57 |
|
0.17 |
References: Model 48A11T199M, Carrier HC37DX120, Century US1016
